Die INFINITY2 CCD USB 2.0 Kameras sind mit einem hochqualitativen Sony CCD Sensor ausgestattet und bieten ausgezeichnete Empfindlichkeit, großen Belichtungszeitumfang und eine 12-bit digitale Datenausgabe. Unter anderem werden folgende Funktionen angeboten: Bild-Binning, automatischerWeißabgleich, programmierbare Verstärkung, Teilbild- und Teilbereichsauswahl. Sie sind ideal für anspruchsvolle wissenschaftliche, medizinische, ophthalmische und naturwissenschaftliche Anwendungen.
Besonderheiten
- 1, 2 und 3 Megapixel-Auflösung
- Höherer dynamischer Bereich für quantitative Analyse
- Schnelle Bildfolge
- Rauscharme Elektronik

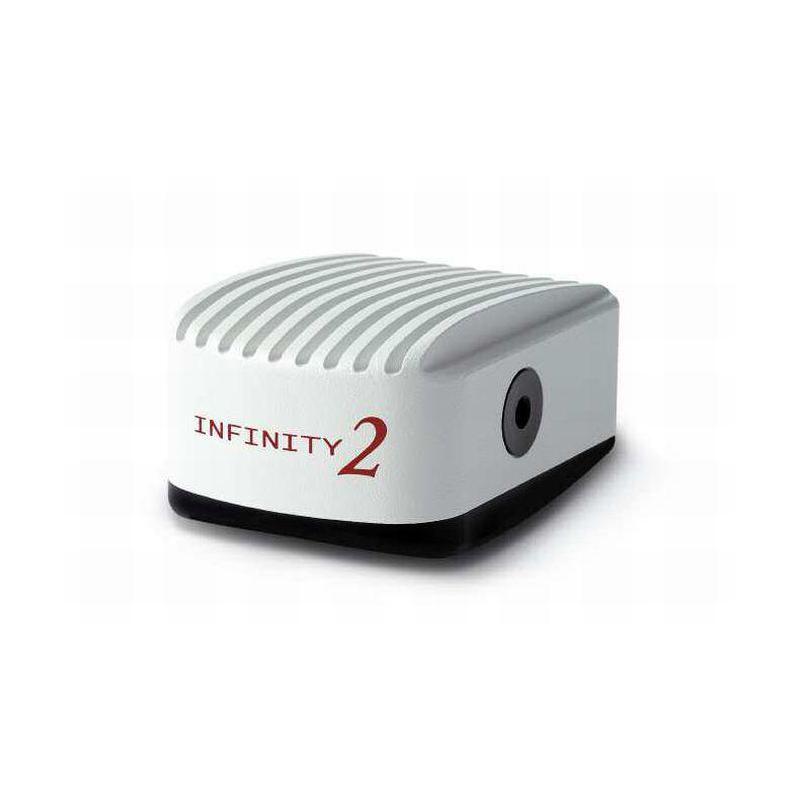

INFINITY2-2M, CCD, monochrom, 2.0 MP
INFINITY 2-2
The INFINITY 2-2 is one of Lumenera’s most popular scientific camera, offering the perfect balance of resolution, color reproduction, sensitivity and high-speed preview. The multi-purpose INFINITY 2-2
provides laboratories with the ability to perform a variety of applications, replacing the need for multiple camera systems. Whether you are performing brightfield or fluorescence microscopy, this is the perfect solution for your technique.
Superior Sensitivity and Color Reproduction
Years of experience in the microscopy market have allowed Lumenera to develop specialized algorithms ensuring superior color reproduction. Additionally, INFINITY software allows the adjustment of all live preview color facets, enabling
users to apply their own personal preferences to each image. For lower light applications the Sony CCD sensor has an extremely high dynamic range, resulting in excellent camera sensitivity.
Full Image Analysis Software Included
INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering; camera control, measurement, annotations, tiling and post capture enhancement, are both included. Camera
and software combined to create a complete microscopy imaging solution for your application.
USB 2.0 Plug-and-Play Interface
Sharing and installation of one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates.
Third-Party Software Integration
INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Mac Camera Software
A Mac camera driver and ImageJ plug-in are available for the INFINITY 2-2.
Superior Technical Assistance Center (TAC)
As a Lumenera customer you gain access to the TAC group and knowledge base
which provide full support for cameras, software and microscopy applications.
Features
Low noise progressive scan 1/1.8” 2.0 megapixel Sony ICX274 CCD sensor
•Full color sub-windowing allows for rapid focus and scanning of samples; up to 30 fps at 640x480 resolution
• 8 or 12-bit pixel data modes
• Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
• Includes TWAIN and DirectX/Direct Show support
Recommended Applications
• Brightfield
• Darkfield
• Live Cell Imaging
• Histology
• Pathology
• Cytology
• Defect Analysis
• Semiconductor Inspection
• Metrology
• Gel Documentation
• Moderate Light Fluorescence
• Quantitative Analysis
Warranty
• Four (4) year warranty
Microscope Coupler
• Requires 0.5x c-mount coupler
