Kamera C-HBSC, color, CMOS, HDMI 2 MP, 1/2.8, Screen

HDMI Essential C-HB – C-HBSC

Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging. OPTIKA H Series is composed by good definition cameras 1080p , allowing to capture high quality images through a simple connection to TV, monitor or projector via HDMI, representing a reliable and cost-effective solution equipped with the latest technology sensors with more vivid colors and great contrast for stunning images. This series features top-class Sony CMOS sensor with excellent color reproduction and significantly high frame rates. Thanks to the convenience and simplicity, being extremely intuitive to install and operate, the OPTIKA H Series is the perfect reponse for various applications in educational and professional fields, industrial quality control and all laboratories. H Series cameras can be simply controlled via a mouse, and they can record live video, or capture images to a removable SD card (supplied, 16G). This series of cameras allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more. It also supports excel storage.

WORLD-CLASS VIEWING EXPERIENCE

HDMI is built to accommodate extremely high-resolution video and deep color, with an extremely reliable color fidelity.

One cable does it all!

HDMI technology transmits crystal-clear digital video and advanced control data through a single cable. One HDMI cable can replace as many as eleven older cables, making the connection much easier. You won’t find that level of elegant simplicity in any other connection.

C-HA – DRASTICALLY REDUCE INSPECTION TIME WITH REAL-TIME FOCUS

Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system of C-HA. Equipped with a high grade sensor, it enables crystal clear 1080p, bright images/videos on HD monitor, through HDMI connection at 50 FPS. All functions are controlled directly from the screen, with the support of a mouse; images/videos can be directly acquired on SD card.

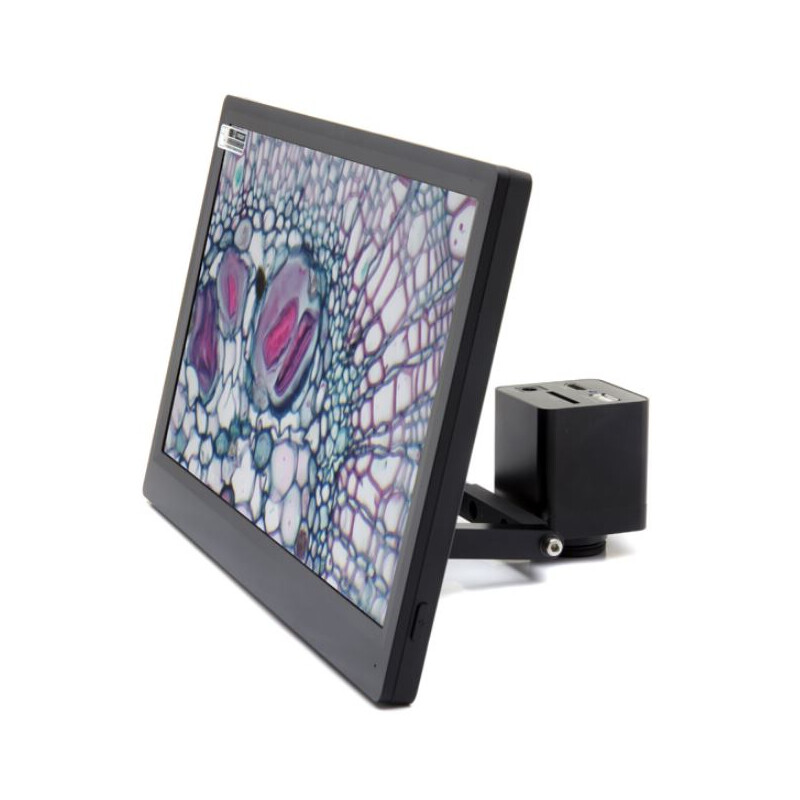

All-in-one, space saving package including 11.5″ full HD monitor with tilting feature and user-friendly HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more. It also supports excel storage. Compact footprint, enabling screen tilting and adjustment to ensure correct posture and eliminate fatigue during observation. Connection to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately). Wireless mouse, SD card and built-in software included.

External digital camera connected to full HD monitor

• Large screen with fast, responsive and smooth control
• Tiltable to be adjustable in height
• Simple operation, built-in software
• Universal connection to any microscope brand
• Vivid color graphic display
• Crisp Full HD images
• High frame rate
• Reliable color fidelity
• C-mount connection (via dedicated adapter, on any microscope)
• HDMI cable, mouse and SD card included
• 1080p HDMI C-mount Microscope Camera with Integrated 11,5" HDMI Monitor
• SD Card Still image capture: Yes
• SD Card Video recording: Yes
• HDMI output: Yes
• C-Mount: Yes
• CS-Mount: No
• Dimensions (mm): 65 x 78 x 88
• Weight (kg): 0.5
• Camera resolution (n° of pixels: W x H):1920x1080
• Color / Monochrome: Color
• Sensor Size: 1/2.8"
• Sensor Technology: CMOS
• Sensor Type: SONY STARVIS
• Image Format: 16/9
• Pixel Size (mm): 2.9x2.9
• Acquisition technology: Rolling shutter
• G sensitivity: 1300mV at 1/30s
• Dark Signal: 0.15mV at 1/30s
• ADC conversion: 8 Bit
• Color Depth: 1, 4, 8, 24 Bit
• Exposure time: 0.01 msec - 1 sec
• Binning: 1x1
• IR filter: Yes
• IR filter range (nm): 380-650 (IR CUT)
• HDMI resolution (MP): 2
• Frame rate full resolution (fps): 60@1920x1080
• Live HDMI measurement: Yes
• Exposure: Auto / Manual
• White Balance: Auto / Manual / ROI
• Type: External
• Connector Jack: 2.1 mm
• Power plug type: Multiplug (EU, UK, US)
• Input voltage: 100/240 Vac, 50/60Hz
• Output voltage: 12 Vdc, 1000 mA
• LED indicator: Yes
• General specifications
• Sensor: HDMI
• Camera : Power Supply
• Calibration slide: Yes
• USB cable (1.8m): Yes
• Wireless Mouse: Yes
• 16GB SD card: Yes
• Working Temperature: -10°C up to +50°C
• Storage Temperature: -20°C up to +60°C
• Relative Humidity: 30% to 80%
• Storage Humidity: 10% to 60%
• Camera SW: HDMILITE (built-in)
• Display size: 11.5"
• Display resolution: 1920x1080
• Contrast ratio: 1000:1
• Luminous flux (lumen): 350
• Power plug type: Multi-plug (EU, UK, US)
• Input voltage: 110/240 Vac, 50/60 Hz
• Output voltage: 12 Vdc 1.5 A
• Input ports: HDMI
• Dimensions (mm): 281x180x14
• Weight (Kg): 0.4
