Mehr über die Serie TB...
TABLET SERIE

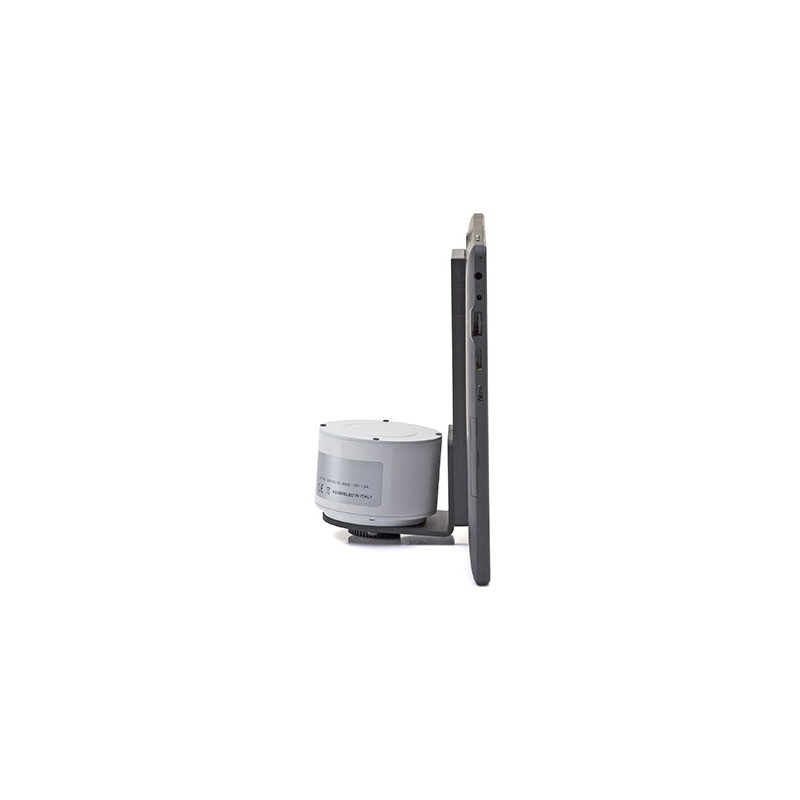

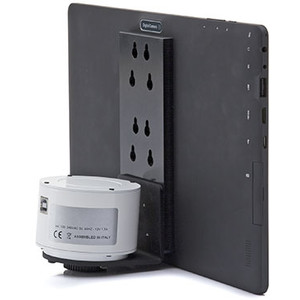

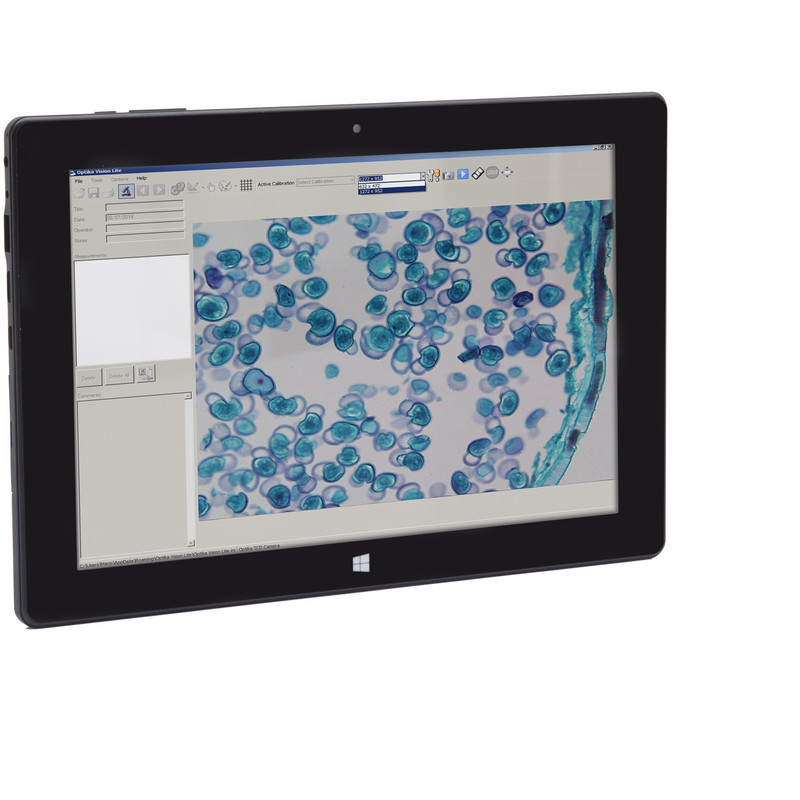

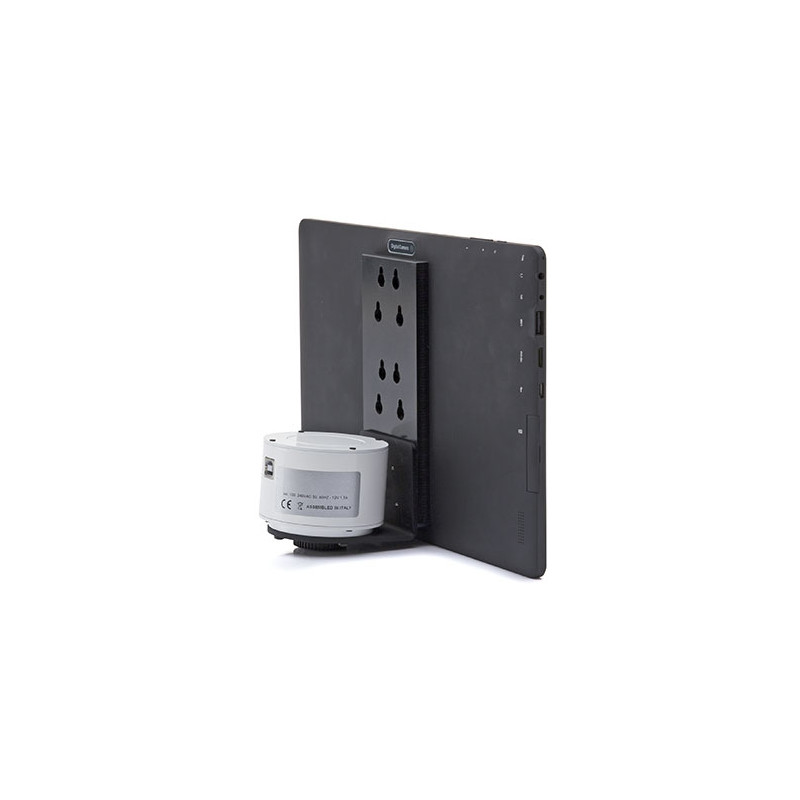

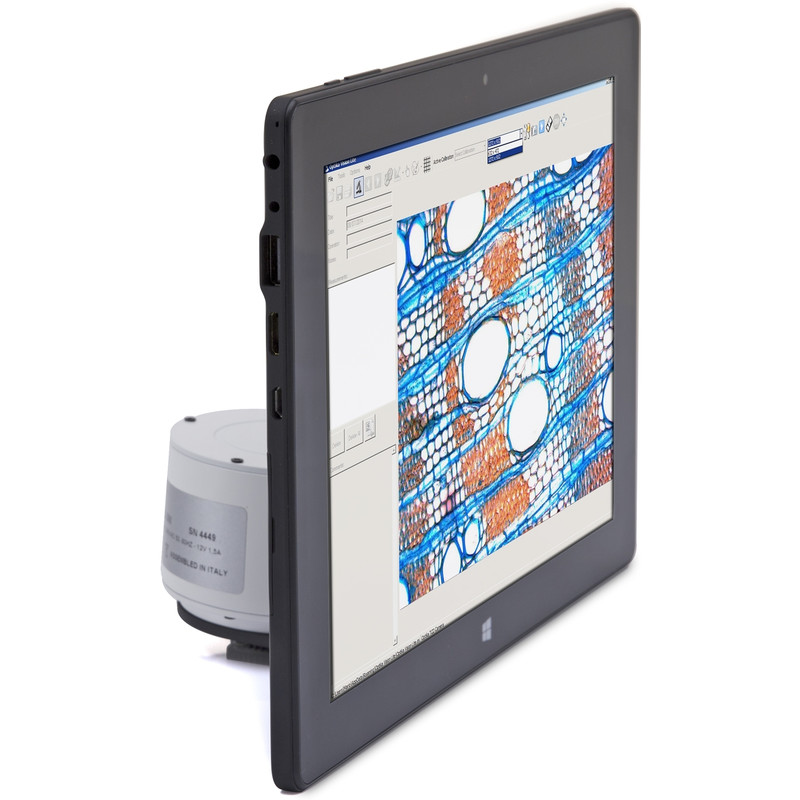

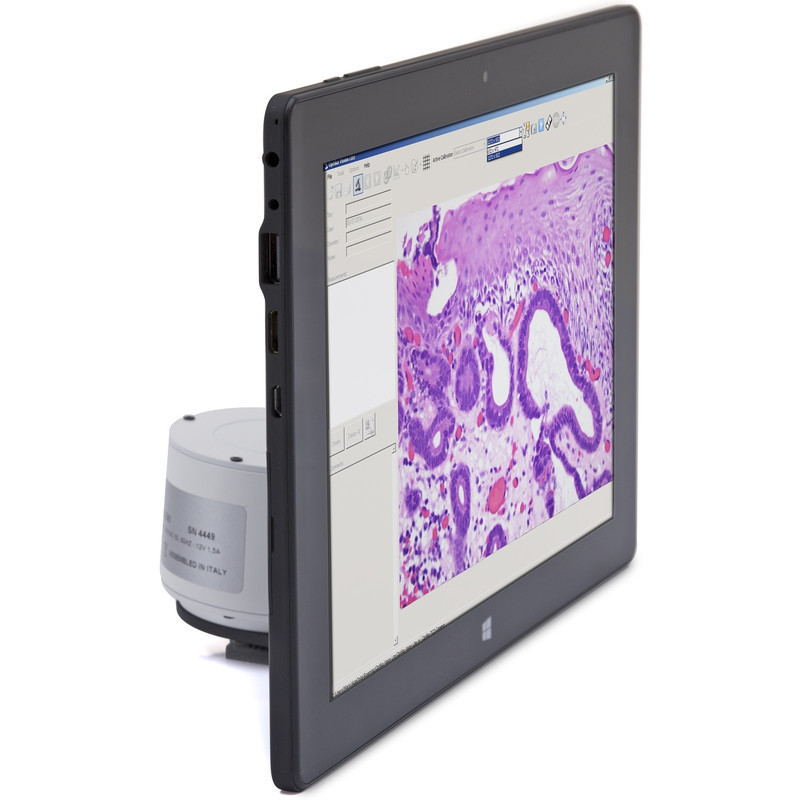

Tablet mit C-mount Kamera
“Eine 2 in1Lösung in der digitalen Mikroskopie”

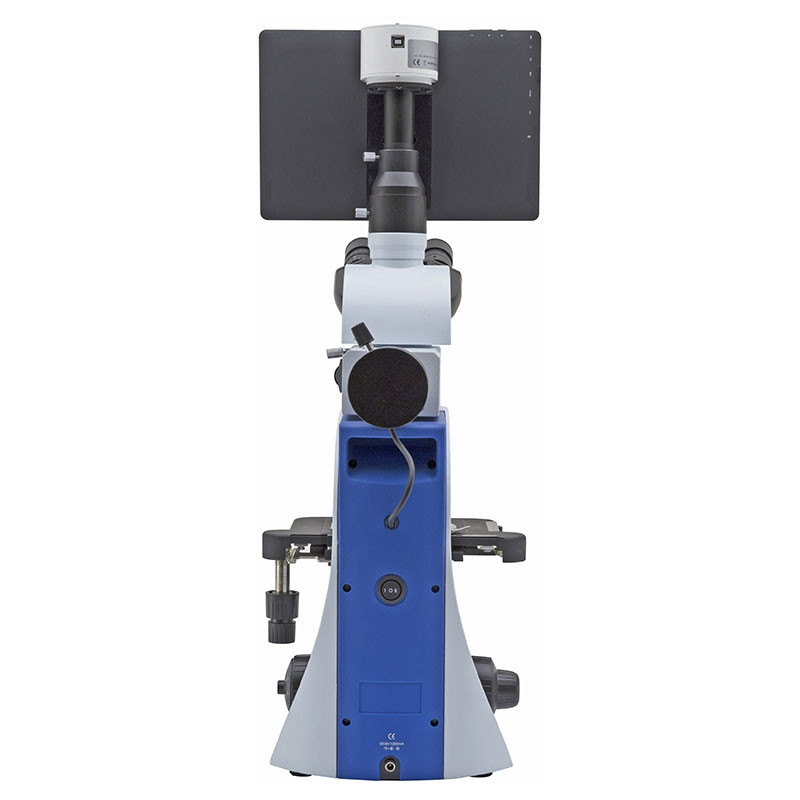

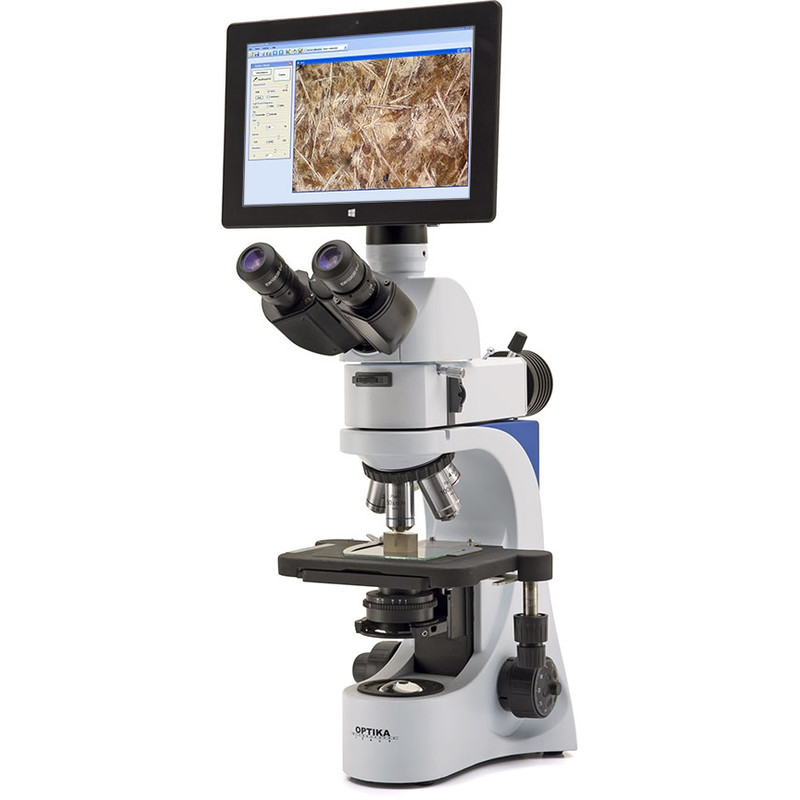

Ein Tablet mit 10.1” LCD touch screen, in Kombination mit einer 3Mp oder 5Mp Kamera: Ein universelles System, das auf jedes trinokulare Mikroskop montiert werden kann.
TABLET
- Operating System: Windows 164-bit
- Language: Multilanguages already installed
- CPU: Intel® Atom™ Z3735F, Quad core (4 Core)
- CPU speed: 1.44 GHz
- Graphics Card:Intel® HD Graphics 400
- Memory: Ram 4 GB LPDDR3
- LCD display:LED 10.1” IPS Multi Touch Screen
- LCD resolution: 1920x1200
- Storage: Hdd 64GB
- Network: Wireless Bluetooth 4.0:
- Input ports Micro USB (OTG) - USB Type-C - Micro SD card reader
- Output ports Microphone - Headphone - Micro HDMI
- Battery Type Lithium-ion
- Battery capacity 6500 mAh
- Power consumption 15W
- Power supply 5V 3A
- Dimensions (mm) 261X167X9
- Weight (Kg) 0.53
- Language Multilanguag
TB-3W
CAMERA SPECIFICATION
- Digital camera resolution: 3,14 MegaPixels
- Analog camera resolution: NO
- Signal output: USB 2.0
- Audio Signal: NO
- Sensor Size: 1\2”
- Sensor technology: CMOS
- Image format: 4\3
- Full Image size: 2048 x 1536
- Pixel size: 3,2 x 3,2 micron
- Frame rate full resolution: 6,5 frames/sec (2048x1536)
- Frame rate other resolutions: 28 frame/sec (1024x768) 55 frames/sec (640x480)
- Sensitivity: 1,0 V/Lux-second (550 nm)
- Signal / noise ratio: 43 dB
- Dynamic range: 61 dB
- Max Exposure time: 0,5 sec
- ADC conversion: 8 BIT
- Color Depth: 8 BIT
- ON board Memory: NO
- External Memory Card: NO
- External camera power: PC USB
- Cooling system: NO
- External Cooling power: NO
- On camera case IR Filter: 700 nm
- Automatic White Balance: Auto / Man
- Automatic Gain Control: Auto / Man
- Automatic Back light control: Auto / Man
- Exposure control: Auto / Man
- C-Mount connection: YES
- CS-Mount connection: NO
SOFTWARE SPECIFICATION
- Supplied Software: Optika Vision Lite
- Driver types: Optika driver, TWAIN
- Capture features: Continuous auto white balance, continuous auto exposure, image size, image capture,
- compressed video capture: Control parameters
- Image size, brightness, gain, exposur time, colors, monochrome, color enhancement, flip, speed.
ACCESSORIES
- CS-mount to C-mount Ring: NO
- Optical adapters: 0,5x (for 23mm eyepiece tube) , this allows the Tablet to move 360 degree
- Adapters for Binocular & Monocular microscopes: NO
- Calibration Slide: YES
- Always Included: 0.5m USB cable
GENERAL CAMERA SPECIFICATION
- Working temperature: +0 up to +60°C
- Storage temperature: -20 up to +70°C
- Relative Humidity: 45% up to 85%
- Dimensions: Height: 5,5cm; Diameter: 7cm
- Height with optical adapter: 10cm
- Weight: 220 gr
