Microscoop Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED

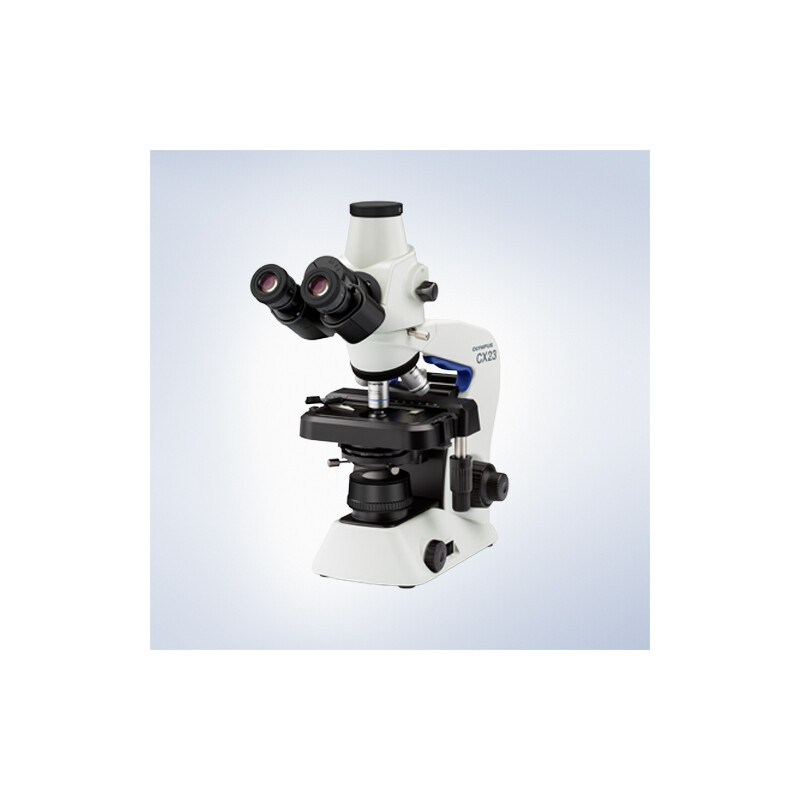

Olympus CX23 Standardconfiguration with trinocular tube (E07MIS0047)

The CX23 series of microscopes from Olympus have become our customers’ most popular educational microscopes over the past 2 years! Olympus offers these microscopes with economical LED lighting technology!

User-friendly Microscope for the Classroom

Focused on improving workflow for educational microscopy, the CX23 upright microscope requires minimal setup

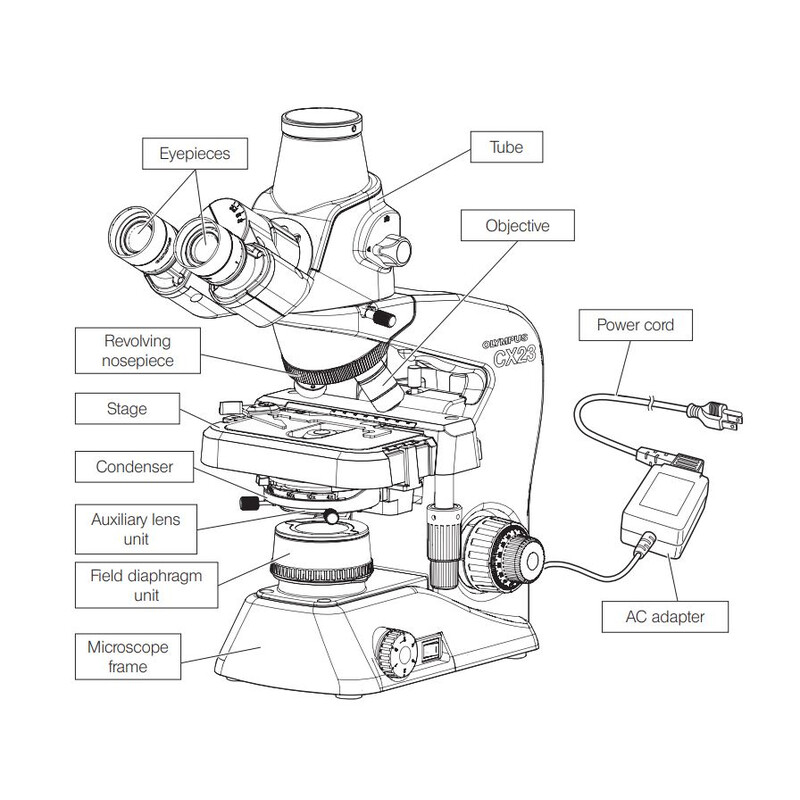

Upright microscope set for transmitted light observation with trinocular tube

• integrated LED illumination
• quadruple nosepiece
• fixed mechanical stage (120 x 132 mm, travelling range 76 x 30 mm)
• right hand low drive control
• specimen holder for one slide
• Abbe condenser, NA 1.25
• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 μm/rotation
• trinocular tube with two widefield eyepieces for FN20 and 30° inclination
• selection of the beam path (eyepiece/camera port = 0/100 or 100/0)
• diopter adjustment on both eyepieces
• interpupillary distance adjustment 48-75 mm
• Plan 4x, NA = 0.1, WD = 27.8 mm, CC= -
• Plan 10x, NA = 0.25, WD = 8 mm, CC = -
• Plan 40x, NA = 0.65, WD = 0.60mm, CC = 0.17
• All optics feature antifungus treatment

Included components:

1. CX23RTFS2-1-2 Microscope Stand (N5731300)
2. Dust cover (038159)
3. UYCP power cable (035425)
