Meer over de serie Medicus...
Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.
Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .
Laboratory microscopes Medicus
- Solid cast tripod in classic gooseneck shape
- Coaxially arranged coarse and fine focusing drive.
- Height adjustment of the coarse adjustment knob total: 12.7 mm.
- Height adjustment of the fine adjustment knob per division: 3 microns - Binocular Siedentopf -Tubus, 360° rotable .
- Viewing angle 30 °
- Tube factor 1x
- Eye distance of 55 mm - 75 mm adjustable
- Diopter compensation at each eyepiece. - 4-position nosepiece with ball bearing guide
- Plan-achromatic lenses, infinity-corrected
- Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
- Sliding range 78 mm x 54 mm
- Specimen holder with spring lever - Height adjustable Abbe condenser NA 1.25
- Integrated 6 V / 20 W halogen lights, infinitely variable

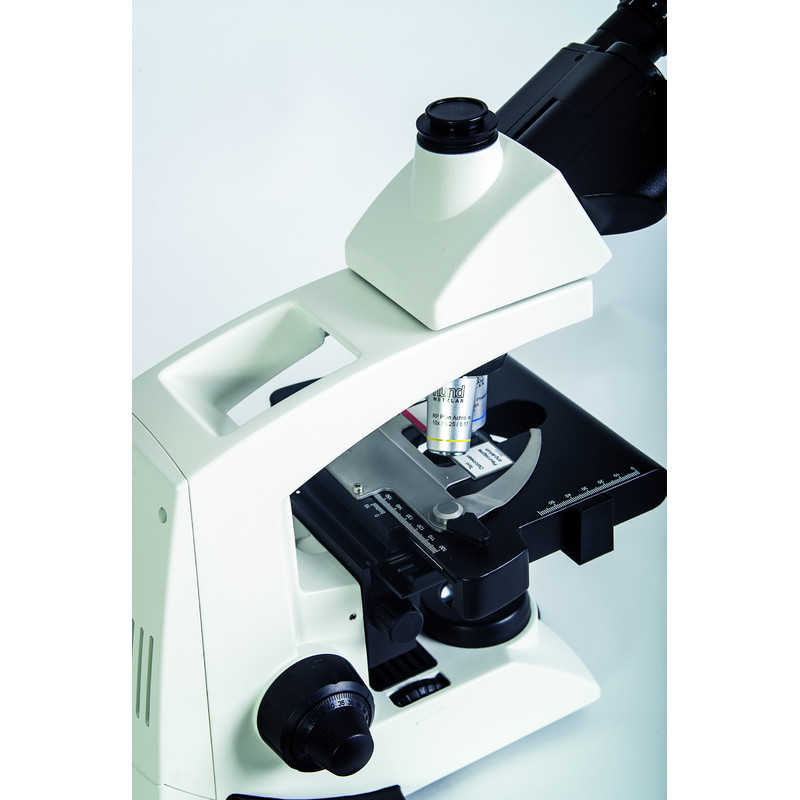

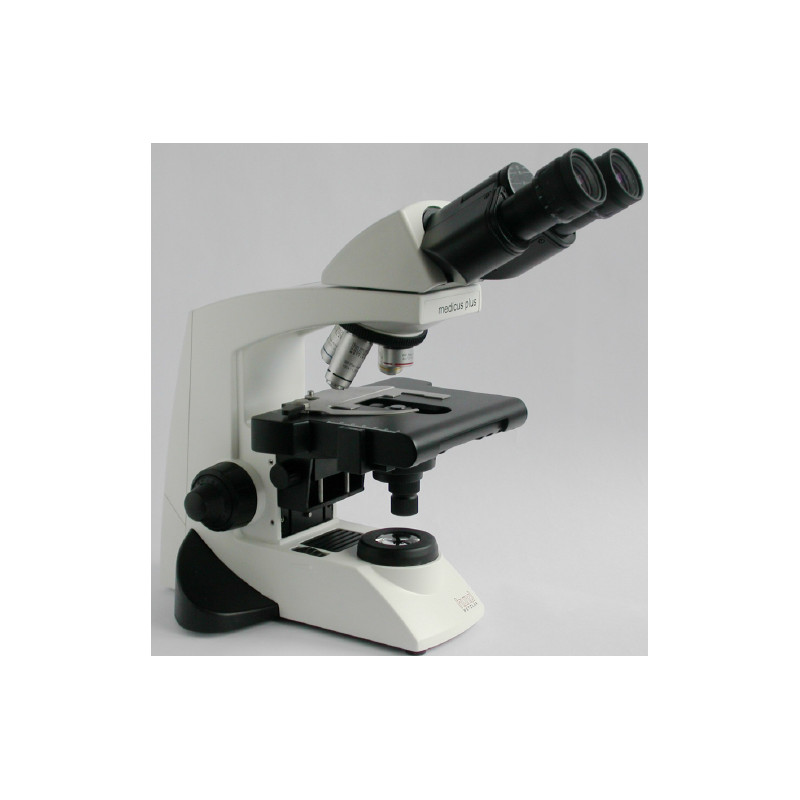

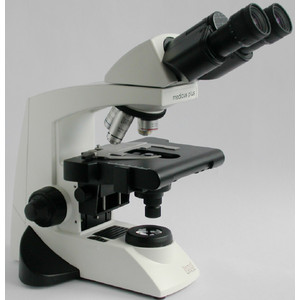

Medicus plus trinocular
with plan-achromatic infinity objectives
Spezification:
- Stand equipment with 20 W halogen lighting
- Binocular Siedentopf tube (30° TF 1x)
- Eyepiece WF 10x / 20 with eyeshades 2 pcs.
- Lens plan 4x / 0.10
- Lens plan 10x / 0.25
- Lens plan 40x / 0.65 with spring slide protection
- Lens plan 100x / 1.25 oil with sprung slide protection
- Height adjustable Abbe condenser NA 1.25
Delivery Scope:
- Power cord
- wrench set
- dust cover
- spare bulb
- spare fuse
- operating instructions
