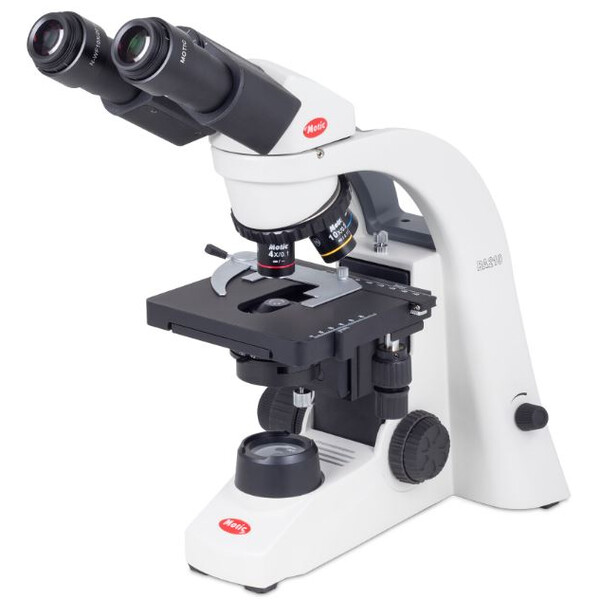

Microscoop BA210 bino, infinity, EC- plan, achro, 40x-400x, LED

Name: Motic Microscoop BA210 bino, infinity, EC- plan, achro, 40x-400x, LED
Brand: Motic
Price: 1150 USD

$ 1.150,00 incl.btw, + verzendkosten

Heeft u elders goedkoper gezien?

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

in winkelwagen

Productomschrijving

Meer over de serie BA-210...

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Optical system Colour Corrected Infinity Optical System (CCIS®)
Observation tube Trinocular head, Siedentopf type
Inclination 30º inclined, 360º rotating
Interpupillary distance 55-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quadruple

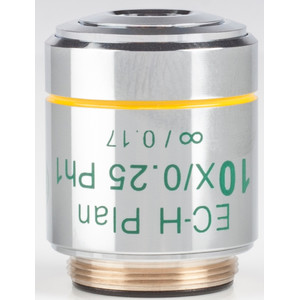

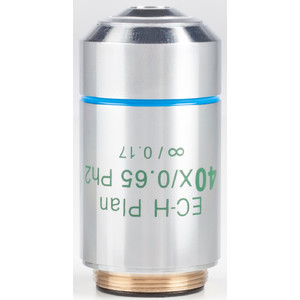

Objective classification CCIS® EC Plan Achromatic, DIN
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size 150x150mm
Travel range X&Y 80x30mm
Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 20mm
Upper limit stop Upper limit stop preset but adjustable
Filter holder On top of the illuminator with fixing cap
Transmitted illumination Quartz halogen 6V/30W with intensity control
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Transformer Internal
Power supply 100-240V (CE)

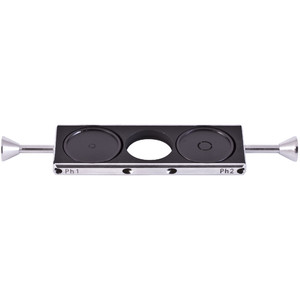

Accessories included
