Microscopen > Staande microscopen > Bright field microscopen > Optika > B-510 > Optika Microscoop B-510MET, metallurgic, incident, trino, IOS W-PLAN MET, 50x-500x, EU
Artikelnummer: 57422

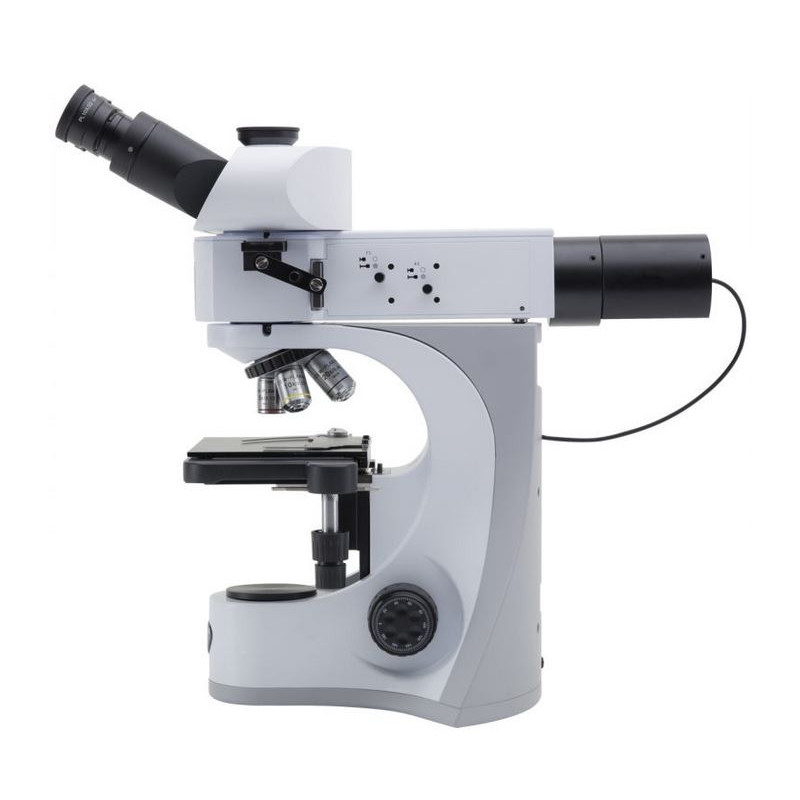

Microscoop B-510MET, metallurgic, incident, trino, IOS W-PLAN MET, 50x-500x, EU

Aanbevolen prijs: $ 5.600,00 Onze prijs:
$ 4.970,00 incl.btw, + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Geen levering mogelijk voor kerst
Controleer alternatieven op voorraad of bestel een tegoedbon!


Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

B-510 Series

OPTIKA B-510 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users. This series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive IOS W-PLAN optics, the Infinity Corrected Optics (IOS) providing the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring good quality routinary optics and designed to ensure field flatness up to F.N. 22. The full Köhler system optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, whilst the state-of-the-art, exclusive X-LED3 lighting source makes sure your specimen will be properly and homogeneously illuminated with incredibly low consumptions and significantly long lifespan. With multi-head observation systems, up to 5 people/colleagues can observe the same image on B-510; ideal for teaching and training students, especially in the medical field. The main observer and additional viewers will benefit of an extremely homogeneous light conditions, with a three-colour pointer with settable intensity to highlight points of interest.

Highlights:

Illumination:

Transmitted brightfield illumination is one of the most commonly used observation method in optical microscopy, and is ideal for fixed, stained specimens or other types of samples having high natural absorption of visible light. B-510 series is fitted with high-efficiency LED brightfield illuminator X-LED3, for the best outcome when using this technique. Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

Optics:

  • Trinocular heads with 22mm field number
  • True infinity optical system available (IOS)
  • Fully centerable condenser for precise light control
  • IOS W-PLAN objectives, high numerical apertures
  • Planachromatic optics with more than 90% flat field
  • Significant optical correction, low field curvature and distortion

Best resolution, color and contrast WITH Köhler Illumination. B-510 Series is equipped with Köhler which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares.In this way, you will achieve the full control over the illumination aperture to reach the best compromise between resolution and contrast and for some enhancements on the depth of field.

Mechanics:

The rackless stage has been designed with a belt-driven mechanism that allows a smooth movement without any protruding part. This design gives you a more compact solution and lowers any risk of injury after accidentally hitting the rack with your hands.

  • Ergonomic positioning of the main controls
  • Long lasting mechanical parts, rackless moving stage
  • Maintenance-free illumination system
  • Improving productivity, reducing fatigue
  • Increases job accuracy and quality
  • Easily portable, with comfortable handgrip

B-510 Material Science (MET)

OPTIKA B-510 Series is ideal for measuring needs, quality control applications, inspection in several fields, including manufacturing processes, soldering and material science. With a field of view of 22 mm, B-510 material science microscopes are equipped with metallurgical attachment and the state-of-the-art, exclusive X-LED8 lighting source as reflected illumination; when included, transmitted light is through X-LED3 lighting source. The oblique illumination opens new horizons by revealing with relief contrast and significant clarity even the finest details, which may be hard to be distinguished when using conventional brightfield techniques. Objectives are IOS W-PLAN MET and NCG (no cover glass), being purposely designed for microscopy use with no a cover slip whilst Köhler diaphragm optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts. Reflected light microscopy is the method to observe specimens which remain opaque even when ground to a thickness of few microns. The range of specimens falling into this category contains metals, ores, ceramics, polymers, semiconductors (unprocessed silicon, wafers, and integrated circuits), coal, plastics, paint, paper, wood, leather, and a wide variety of specific materials.

MATERIAL SCIENCE / METALLOGRAPHY

Reflected light microscopy is the method for observation of specimens that remain opaque even when ground to a thickness of few microns. The range of specimens falling into this category is incredibly wide and includes most metals, ores, ceramics, many polymers, semiconductors (unprocessed silicon, wafers, and integrated circuits), coal, plastics, paint, paper, wood, leather, glass inclusions, and a wide variety of specific materials.

Improving The Most Important Aspects of Microscopy Experience

TOP IMAGES COME FROM IMPRESSIVE OPTICS

  • Trinocular heads with 22mm field number
  • True infinity optical system available (IOS)
  • Fully centerable condenser for precise light control

LABORATORY GRADE OPTICS

  • IOS W-PLAN objectives, high numerical apertures
  • Planachromatic optics with more than 90% flat field
  • Significant optical correction, low field curvature and distortion

CONTRAST ENHANCING METHODS WITH OBLIQUE ILLUMINATION AND DIAPHRAGMS

Oblique illumination, also known as simple darkfield, is considered an alternative to the darkfield technique except that, instead of using dedicated darkfield objectives, the system uses the same brightfield objectives and the specimen is lighted from a movable “curtain” that has the task to modulate the oblique light; doing this, the light comes from only a different perspective generating a pseudo-darkfield effect.

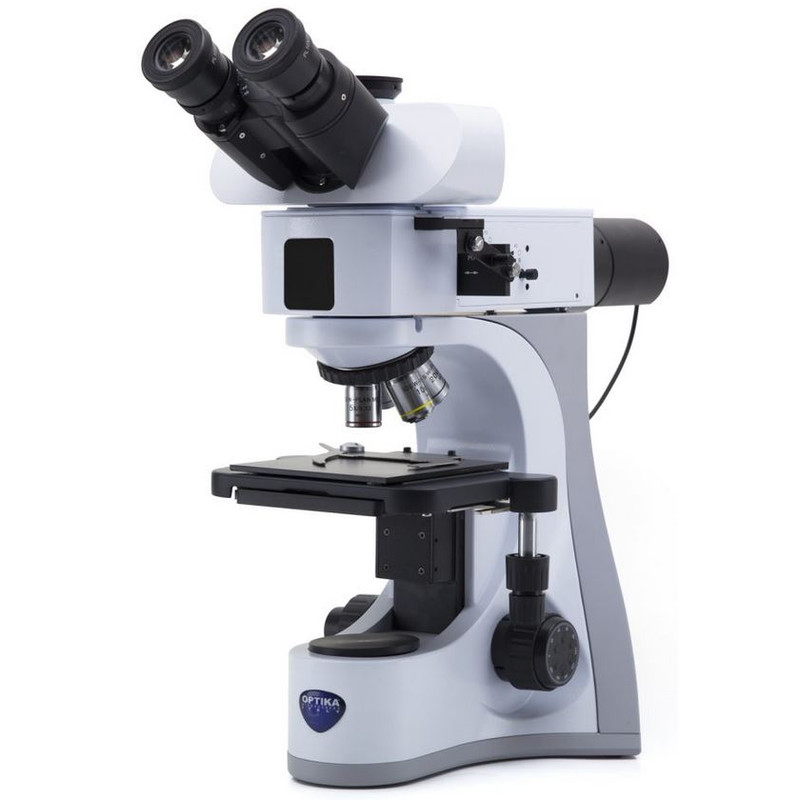

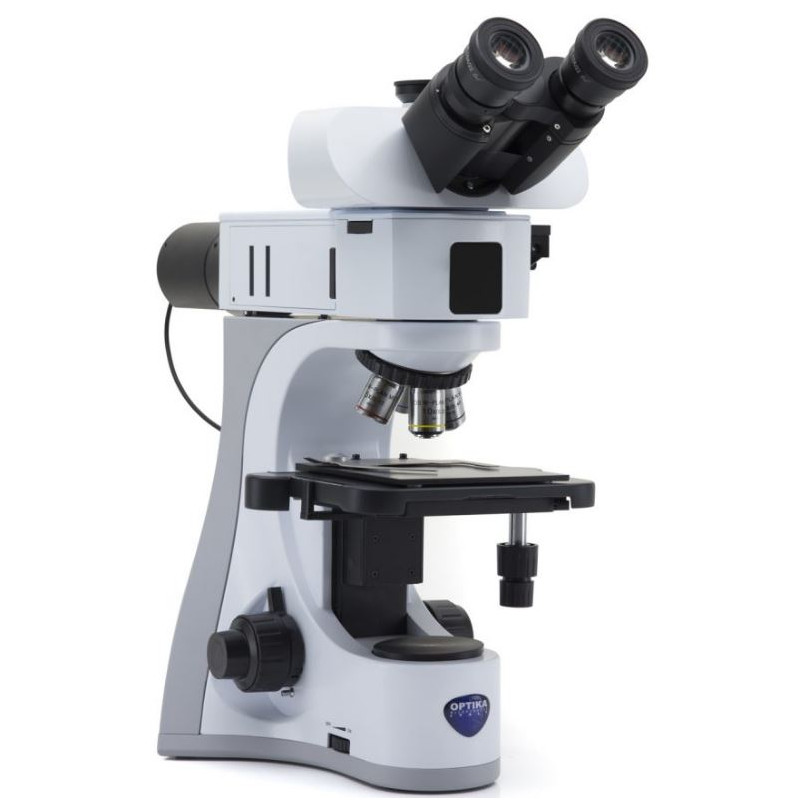

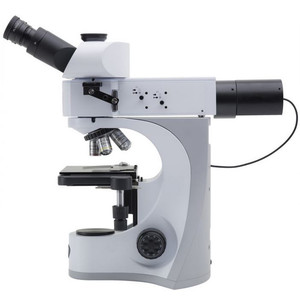

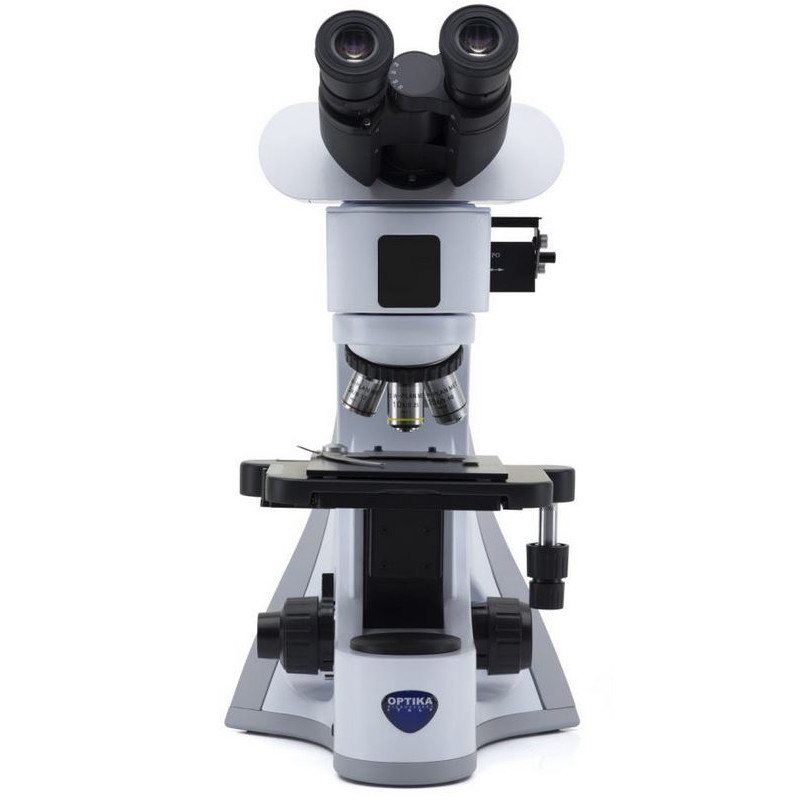

Model: B-510MET

Typology: ROUTINE MICROSCOPE

Description: Laboratory microscope for routine and research applications. Dye-cast frame, with high stability and ergonomy, for reflected light observation

Observation Modes: Incident light only: Brightfield, Simple Polarization, Oblique Illumination.

Illumination

Incident light:

  • High-efficiency X-LED8 with white LED
  • Light intensity control using a knob on left side of the frame.
  • LED power: 8 W (comparable to a 100 W halogen bulb).
  • Color temperature: 6,300 K.
  • LED lifetime: > 50,000 hours.
  • External power supply: Input 100-240 Vac 50-60 Hz / Output 6 Vdc 2.5 A.
  • Max power required: 13 W.

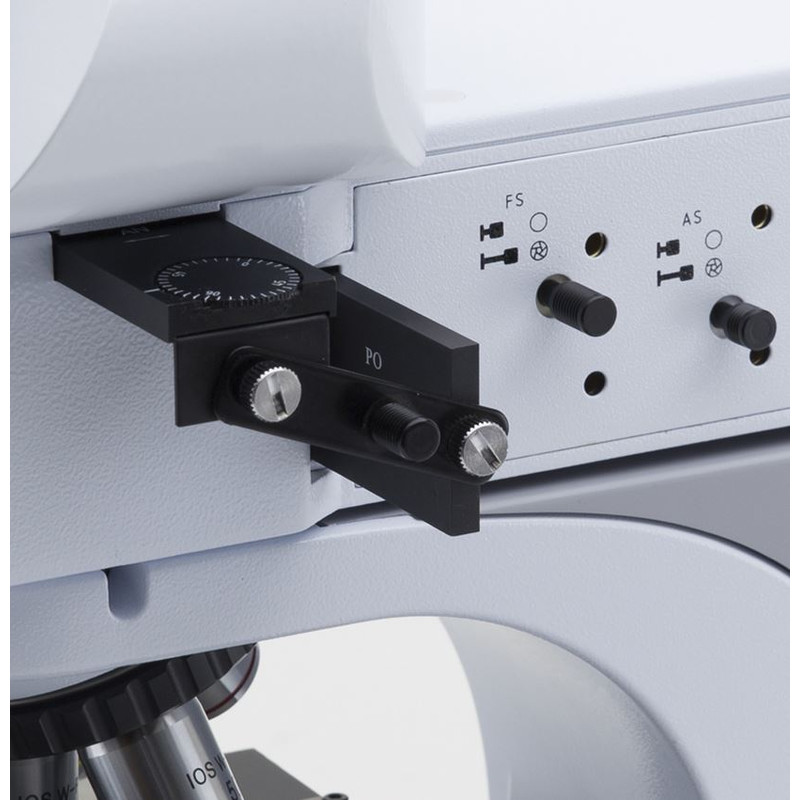

  • Köhler illumination system with Field and Aperture Diaphragms, centrable.
  • Oblique illumination system for relief contrast.

Focusing:

  • Coaxial coarse Fine focusing mechanism (graduated, 0.002 mm)
  • Upper stop, to prevent the contact between objective and specimen.
  • Flat fine focusing knob on the right side.
  • Adjustable tension of coarse focusing knob.

Stage:

  • Double layer with mechanical sliding stage
  • 233x147 mm, X-Y movement range 78x54 mm.
  • Belt-drive in X direction.
  • Vernier scale on two axes, accuracy 0.1 mm.

Nosepiece:

  • Quintuple revolving nosepiece
  • rotation on ball bearings.

Head:

  • Trinocular observation head
  • Inclined 30°
  • Rrotatable 360°
  • Diopter adjustment on left eyepiece (+- 5 diopter adjustment).
  • Interpupillary adjustment 50 - 75 mm
  • Fixed photo port, 50/50 ratio.

Eyepieces:

  • Plan
  • Extra Wide Field, PL
  • 10x/22
  • High Eyepoint.

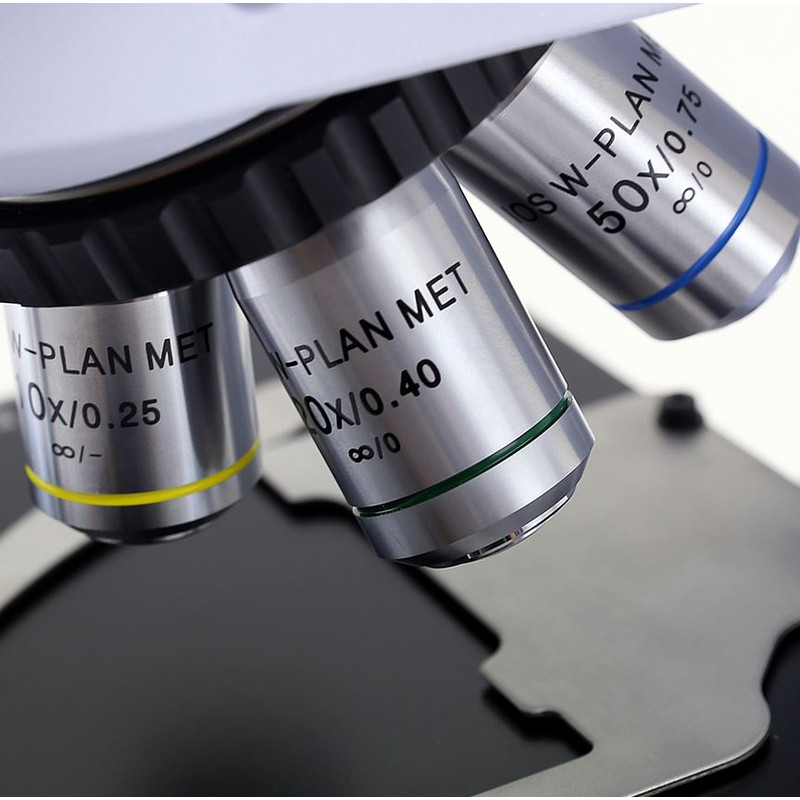

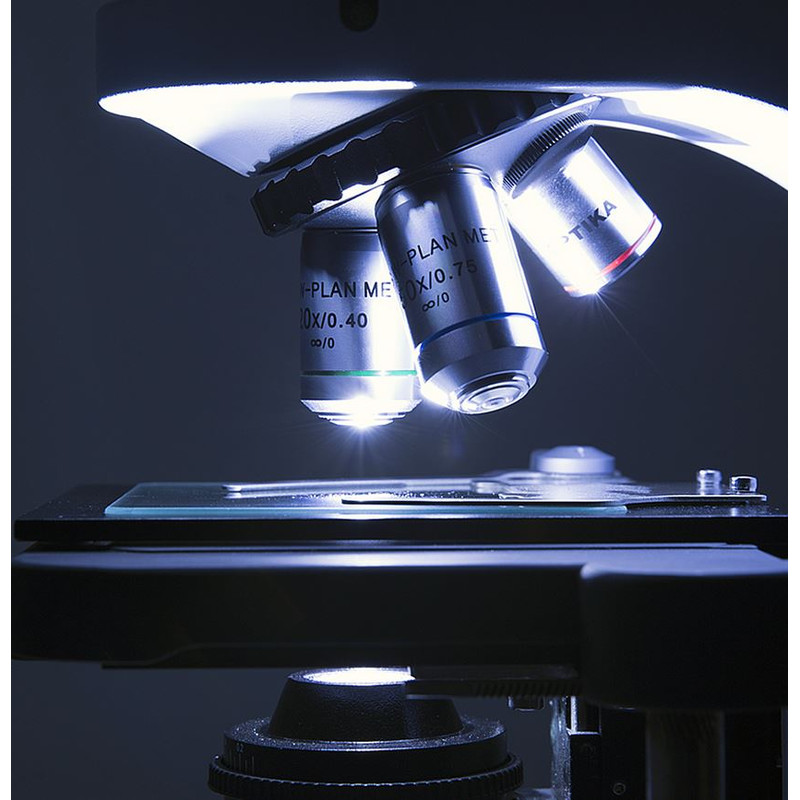

Objectives:

  • Infinity corrected optical system IOS.
  • - IOS W-PLAN MET 5x/0.12, W.D. 15.5 mm
  • - IOS W-PLAN MET 10x/0.25, W.D. 10 mm
  • - IOS W-PLAN MET 20x/0.40, W.D. 5.8 mm
  • - IOS W-PLAN MET 50x/0.75, W.D. 0.32 mm
  • All objectives have anti-fungus treatment.

Dimensions:

  • HEIGHT: 505 mm
  • WIDTH: 270 mm
  • DEPTH: 550 mm
  • WEIGHT: 12.3 kg

Accessories:

  • Polarizer and Analyzer filters
  • Instruction manual and
  • Dust cover

Specificaties

Optiek


Image scale
5-50
Aantal objectieven
4
Belichting
Incident light
Veldkromming
plan
Kleurcorrectie
achromatisch
Suspensie
ja
Immersie lens
ja
Lamp type
LED
Objectief 1
5x/0.12, W.D. 15.5 mm, IOS, w-plan, MET
Objectief 2
10x/0.25, W.D. 10 mm, IOS, w-plan, MET
Objectief 2
20x/0.40, W.D. 5.8 mm, IOS, w-plan, MET
Objectief 1
50x/0.75, W.D. 0.32 mm, IOS, w-plan, MET
Oculair
WF 10x / 22 mm (Ø 30mm)
Oneindig gecorrigeerd
ja
Vergroting
5- 500
Optisch systeem
oneindig

Capaciteit


Brightness control
ja
Fluorescence
nee
Brightfield
ja

Mechaniek


Ontwerp
Trinocular
inzicht (°)
30° schuin zicht
Specimen stage
Kruistafel
Revolver
5
Scherpstellen
Grove en fijn afstelling

Algemeen


Gewicht (g)
12300
Hoogte (mm)
505
Breedte (mm)
270
Lengte (mm)
550
Serie
B-510

Toepassingsgebied


Medicijn
ja

Toepassing


Metallurgie
ja
Mineralogie
ja

Diversen


Leverancier Productnummer
B-510MET
