Microscopie toebehoren > Camera's > Camera's > Motic > Moticam S > Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Artikelnummer: 65834

Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

MOTICAM S SERIES

NEW MOTICAM S SERIES

Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens

wide. The accelerated data readout enables to work on fast phenomena in biology and industry.

MOTIC IMAGES PLUS 3.0 SOFTWARE

Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to

work on your PC or laptop.

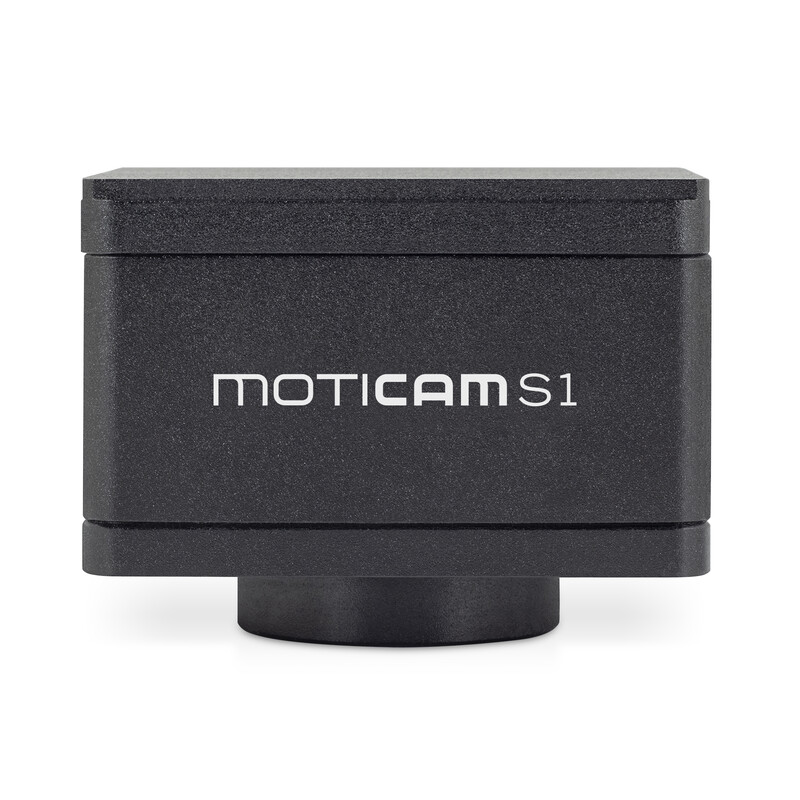

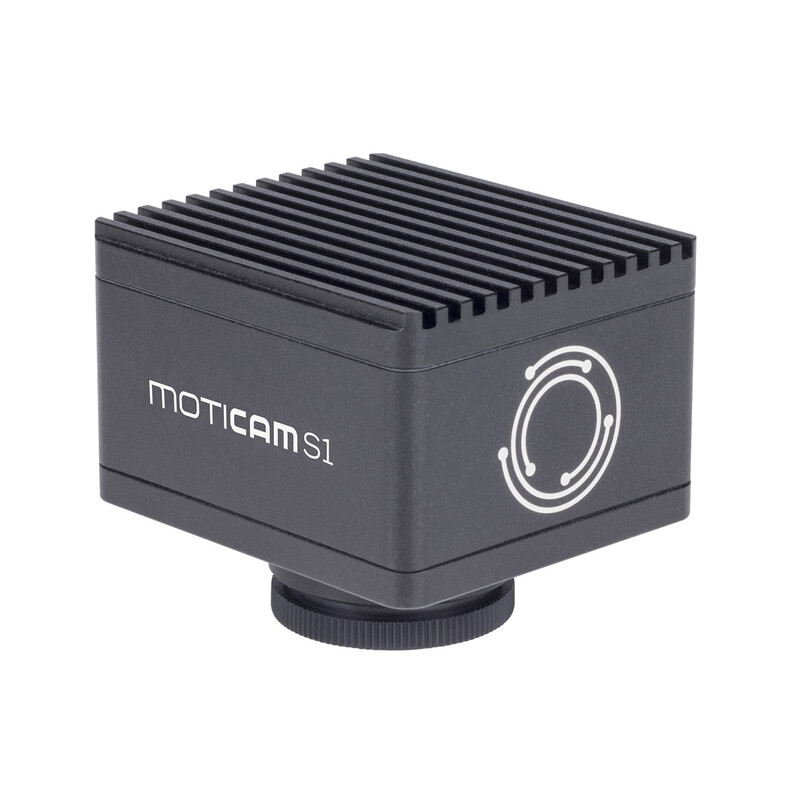

MOTICAM S1

THE STARTING POINT

Moticam S1 is the entry model for back-illuminated sensor technology and speedy data transfer (with frame rates up to 120 fps*), with easy image setting and capturing. Create your perfect images for a professional database.

MOTICAM S1

  • Sensor type sCMOS
  • Sensor size 1/3"
  • Imaging area 6.09mm (Diagonal)
  • Capture resolution 1.2MP
  • Live display mode through USB 1280x960, 640x480 pixels
  • Pixel size 3.75x3.75μm
  • Scan mode Progressive
  • Shutter mode Rolling Shutter
  • Data transfer USB 3.1
  • Max. frames per second (fps*) 1280x960 @ 120fps 640x480 @240fps
  • Exposure time 15 μsec to 2 sec
  • Operating temperature From -10 to +60 Degrees Celsius non condensing
  • Sensitivity 2350mV(G) @ 1/30 sec
  • Support device TWAIN, SDK and DirectShow Driver
  • Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
  • Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
  • Lens mount C-Mount
  • Software Motic Images Plus 3.0 for Windows, OSX and Linux
  • Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
  • Power supply 5V (from USB Port)
  • Package includes CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux

Specificaties

Capaciteit


Sensor size (mm)
1/3"
Megapixel
1.2
Resolutie foto
1280x 960
Uitbreidbare opslag
-
Zoom (digitaal)
-
Zoom (Optisch)
-
LCD scherm
-
Resolutie video
640x480 (240fps)
TV output
-
Interface
USB3.1
Stroomvoorziening
USB3.1
Video function
ja
Lichtgevoeligheid (Lux)
2350mV(G)@1/30sec

Camera


Megapixel
1.2
Peltier koeling
nee
Kleurencamera
ja
Beeldoverdracht
USB 3.0
Sensor size (″)
1/3
Sensor
CMOS
Pixel size
3,75
Resolutie foto
1280 x 960
Frame rate (fps)
240
Camera sluiter
Rolling Shutter
Min. belichtingstijd (ms)
0.015
Max. Belichtingstijd (ms)
2000
Gevoeligheid (mV/s)
2.35 V @ 1/30 s
Benodigde adapter
0.35x
Software
Motic Images Plus 3.0
Ondersteunde besturingssystemen
Win 7/8/10 Mac OS Linux

Algemeen


Kleur
zwart
Serie
Moticam S

Diversen


Leverancier Productnummer
110600101081
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
Motic Camera Kamera S1, color, CMOS, 1/3", 1.2MP, USB 3.1
