MOTICAM S SERIES
NEW MOTICAM S SERIES
Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens
wide. The accelerated data readout enables to work on fast phenomena in biology and industry.
MOTIC IMAGES PLUS 3.0 SOFTWARE
Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to
work on your PC or laptop.

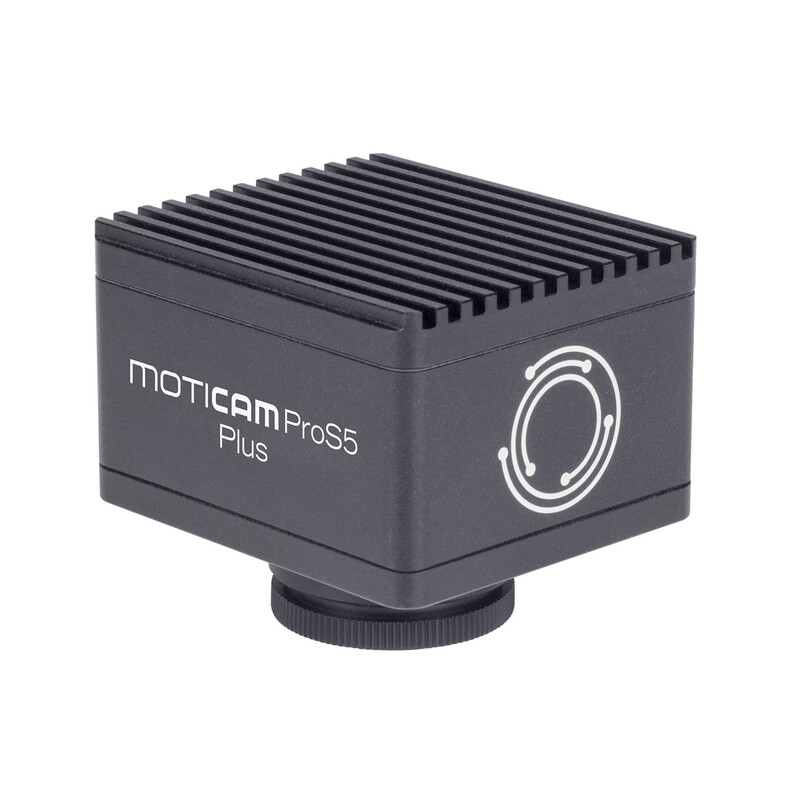

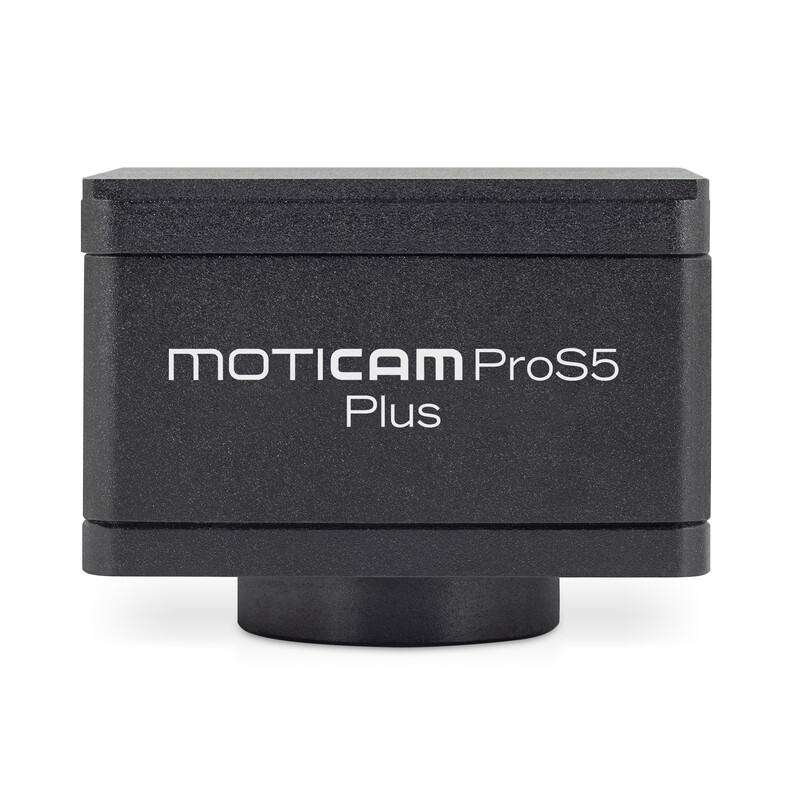

MOTICAM Pro S5 Plus
AN ULTIMATE SOLUTION, STILL AFFORDABLE
Moticam Pro S5 Plus carries a large 2/3” sensor with 5MP resolution at a maximized frame rate of 70 fps* in full resolution. This camera covers all important aspects of imaging: resolution for detail information, speed for fast phenomena and a large sensor to cover extended areas in a single shot.
MOTICAM Pro S5 Plus
- Sensor type sCMOS
- Sensor size 2/3"
- Imaging area 11.1mm (Diagonal)
- Capture resolution 5MP
- Live display mode through USB 2448x2048, 1224x1024 pixels
- Pixel size 3.45x3.45μm
- Scan mode Progressive
- Shutter mode Global Shutter
- Data transfer USB 3.1
- Max. frames per second (fps*) 2448x2048 @ 68.3fps 1224x1024 @ 175.8fps
- Exposure time 7 μsec to 2 sec
- Operating temperature From -10 to +60 Degrees Celsius non condensing
- Sensitivity 1146mV(G) @ 1/30 sec
- Support device TWAIN, SDK and DirectShow Driver
- Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
- Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
- Lens mount C-Mount
- Software Motic Images Plus 3.0 for Windows, OSX and Linux
- Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
- Power supply 5V (from USB Port)
- Package includes CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
