Microscopen > Staande microscopen > Fluorescence microscopen > Euromex > Oxion > Euromex microscoop OX.3070, binoculair, Fluarex

Artikelnummer: 44131

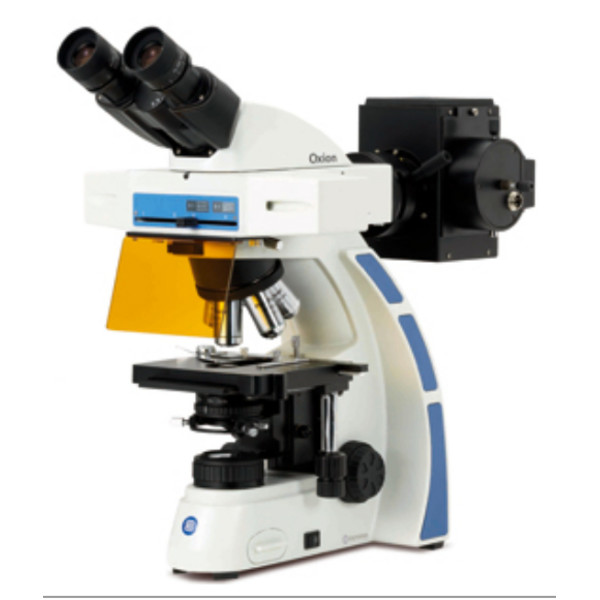

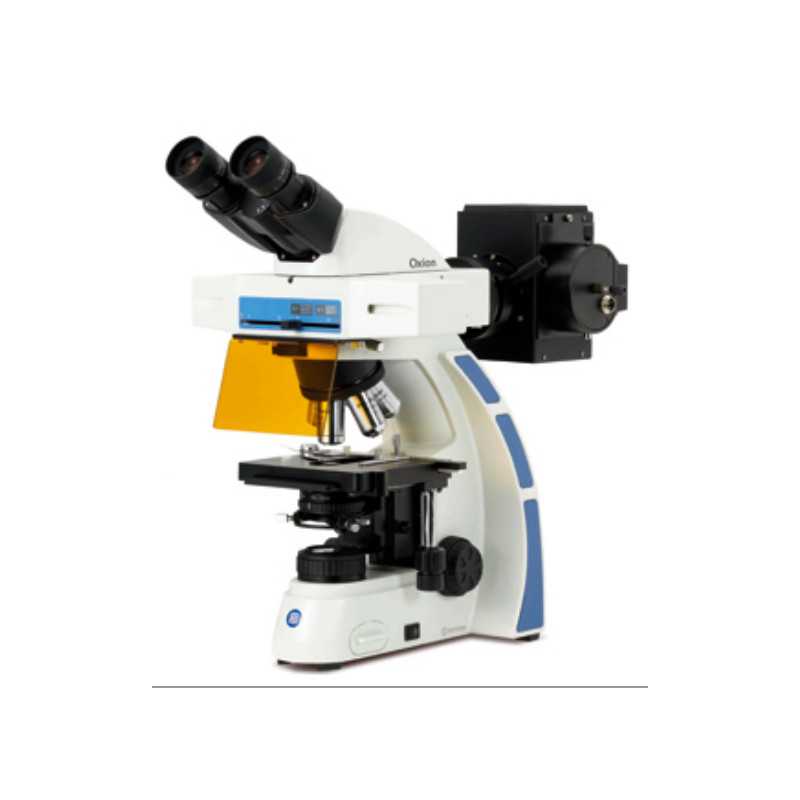

microscoop OX.3070, binoculair, Fluarex

Name: Euromex microscoop OX.3070, binoculair, Fluarex
Brand: Euromex
Price: 8500 USD

$ 8.500,00 incl.btw, + verzendkosten

Heeft u elders goedkoper gezien?

lange termijn
Niet meer beschikbaar + verzendtijd

Productvragen?

advies voor Microscopie

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

Wide Field eyepieces HWF 10x / 22
Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
Binocular withor without photo port
Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
Zernike phase and bright field disc condenser with 4 phase rings
Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
Large stage with ball beared XY translation stage with optional heating elements and temperature controller
Adjustable 3 Watt LED illumination
100 Watt mercury vapor lamp for fluorescence
Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Specificaties

Optiek

Image scale

40-400 (4 (N.A. 0,10), 10 (N.A. 0,25), 40 (N.A. 0,65 met preparaatbescherming), 60 (N.A. 0,85 met preparaatbescherming))

Condensor

Abbe 1,25 N.A., scherpte instelbaar, met irisdiafragma, verstelbaar in de hoogte

Lamp type

LED

Lens type

Plan apochromatisch

Oculair

10/22

Stroomvoorziening

85-240 V

Belichting

Doorgelaten licht

Vergroting

40, 100, 400

Capaciteit

Brightness control

regelbaar

Lamp type

Reflected 100W mercury-vapour light source for fluorescence

Fluorescence

Brightfield

Mechaniek

Werkafstand (mm)

Ontwerp

Binoculair

inzicht (°)

30 ° in de verticale draaibare Siedetopf-buis. Voor phototube 80/20. Oogafstand 50-75 mm.

Scherpstellen

Grove en fijn afstelling

Specimen stage

Kruistafel

Bijzonderheden

Centreerfase

Oplaadbare batterij

Geïntegreerde digitale camera

Filterhouder

Luminous field diaphragm

Stoftas

Algemeen

Kleur

wit / blauw

Gewicht (g)

15000

Hoogte (mm)

397

Lengte (mm)

294

Serie

Oxion

Werkwijze contrast

Fluorescence

toon meer...

toon minder...
