Microscopie toebehoren > Belichting > Ringlampen > SCHOTT > VisiLED > SCHOTT LED Slim ringlicht, Ø 66
Artikelnummer: 49583

LED Slim ringlicht, Ø 66

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

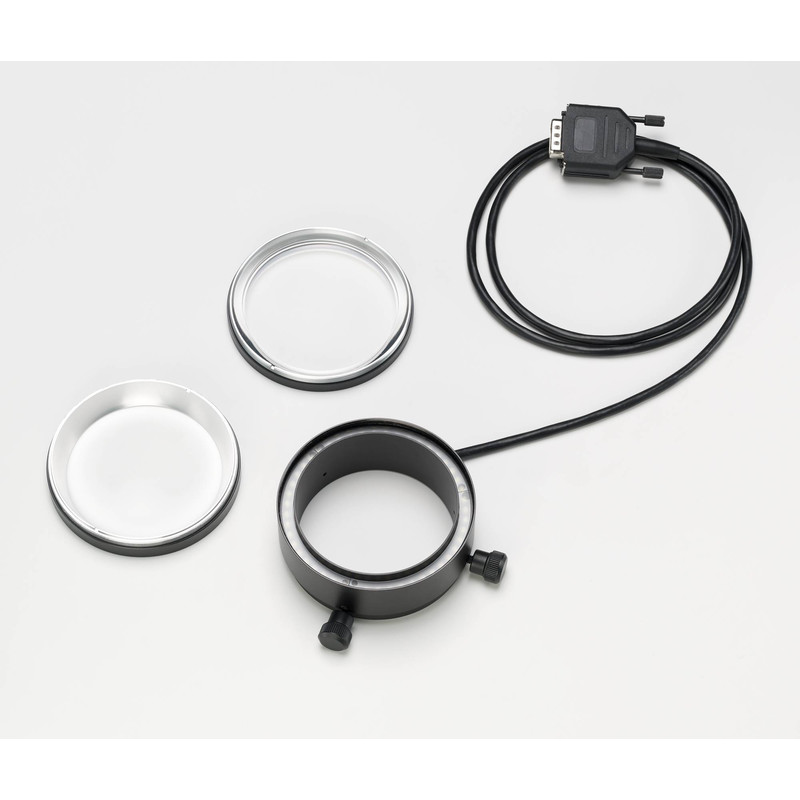

SCHOTT VisiLED Slim LED Ringlight

Focus optics rings for various working distance ranges The Slim Ringlight is a further innovative LED ringlight system, specifically developed for stereo microscopy to illuminate all types of objects in industrial and life science applications.

Due to its slim housing, it is optimal for unconfined object preparation and provides ample space for the usage with objective revolvers.

By simply exchanging screwable focus optics rings, three variable working distance ranges are possible for brightfield and darkfield illumination

Advantages:

  • Easily adaptable to microscope objectives by means of thumb screws
  • Homogeneous incident or oblique illumination
  • Variable working distance ranges possible by exchange of focus optics rings
  • Implementation of brightfield and darkfield applications

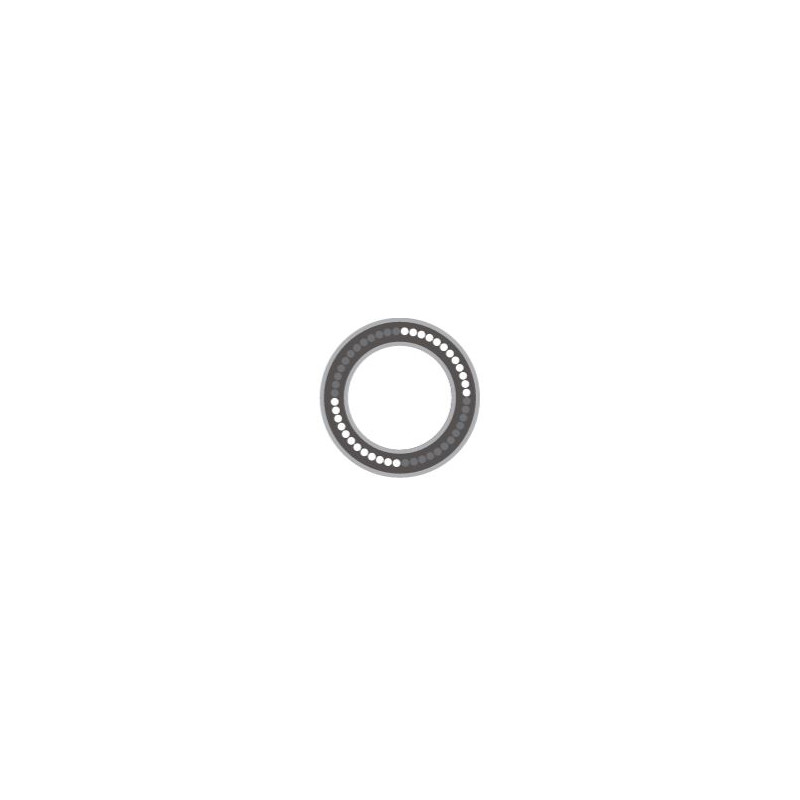

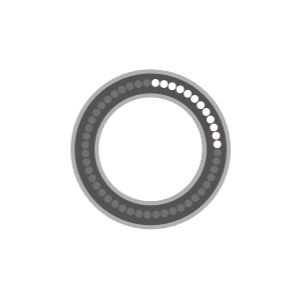

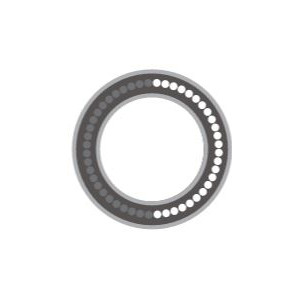

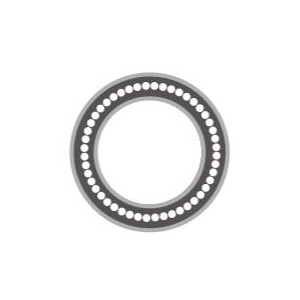

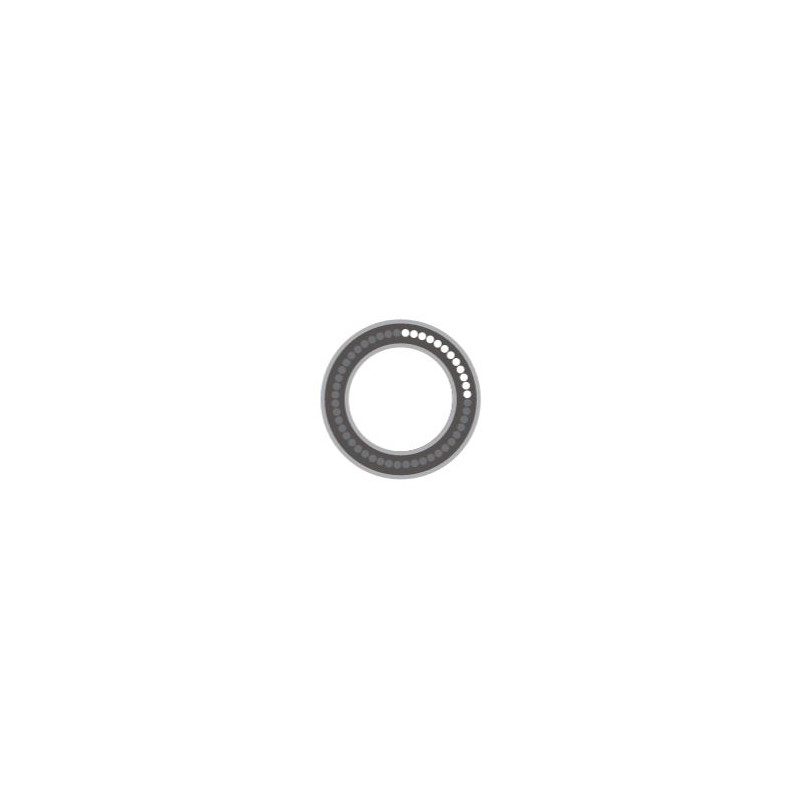

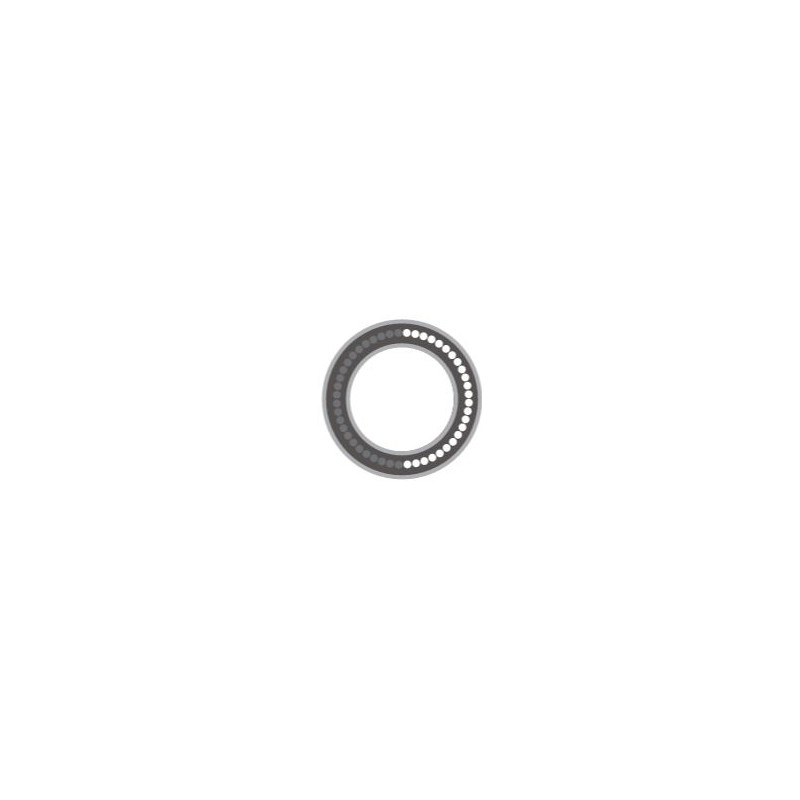

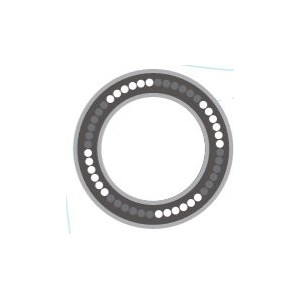

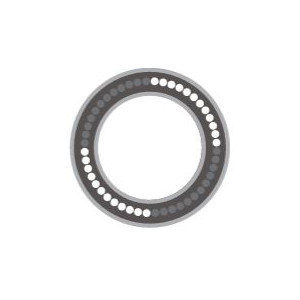

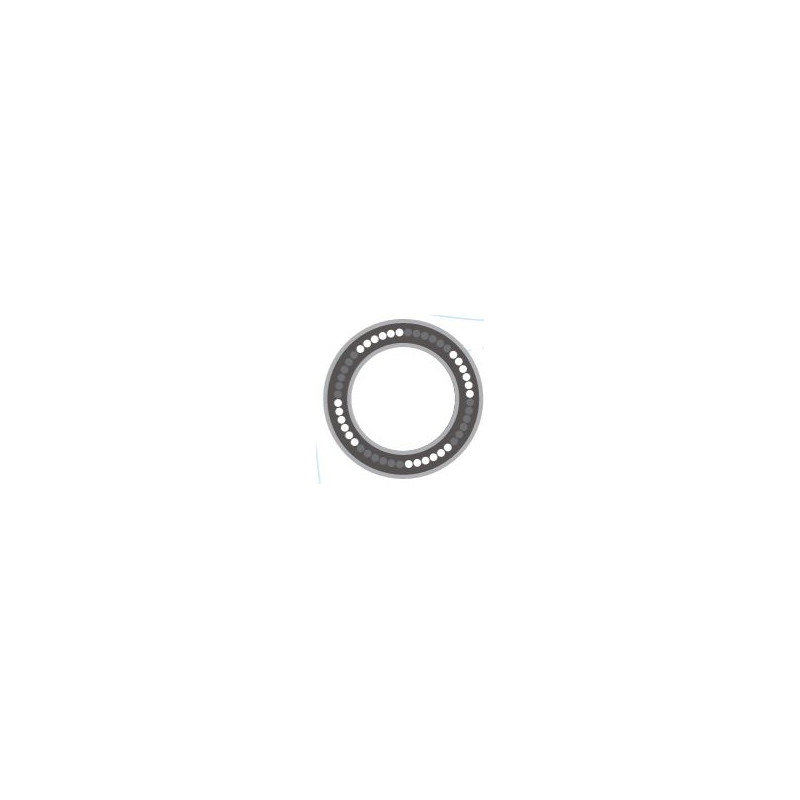

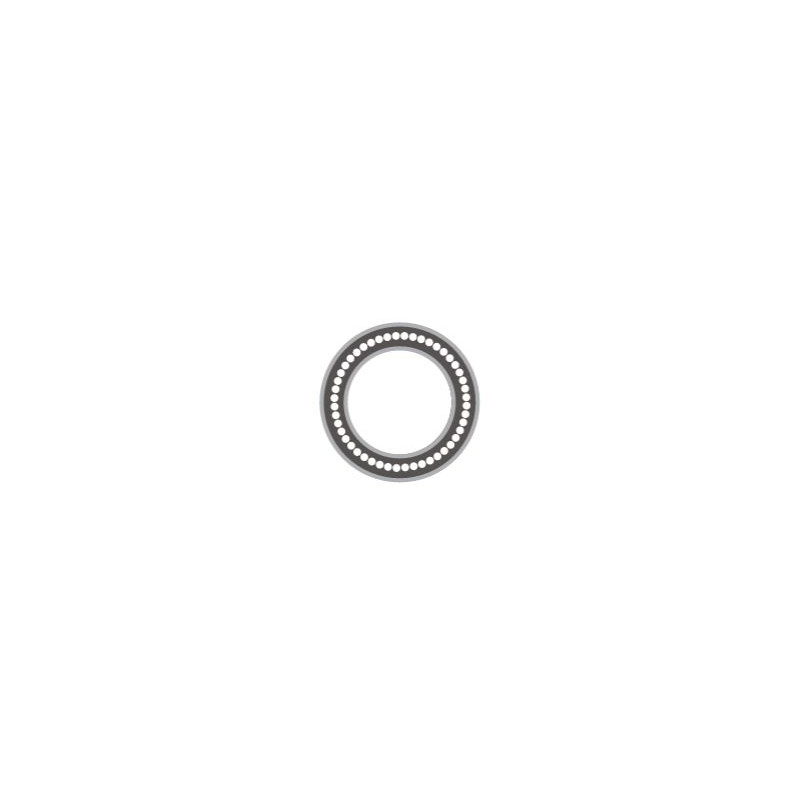

  • Segments controllable in different preset modes

Benefits:

  • Slim and space saving LED ringlight
  • Optimal for unconfined object preparation or usage with objective revolve

Deacription:

  • Free Working Distance: 40-90mm and 20-40mm; Focus optics rings for both working distance ranges are included

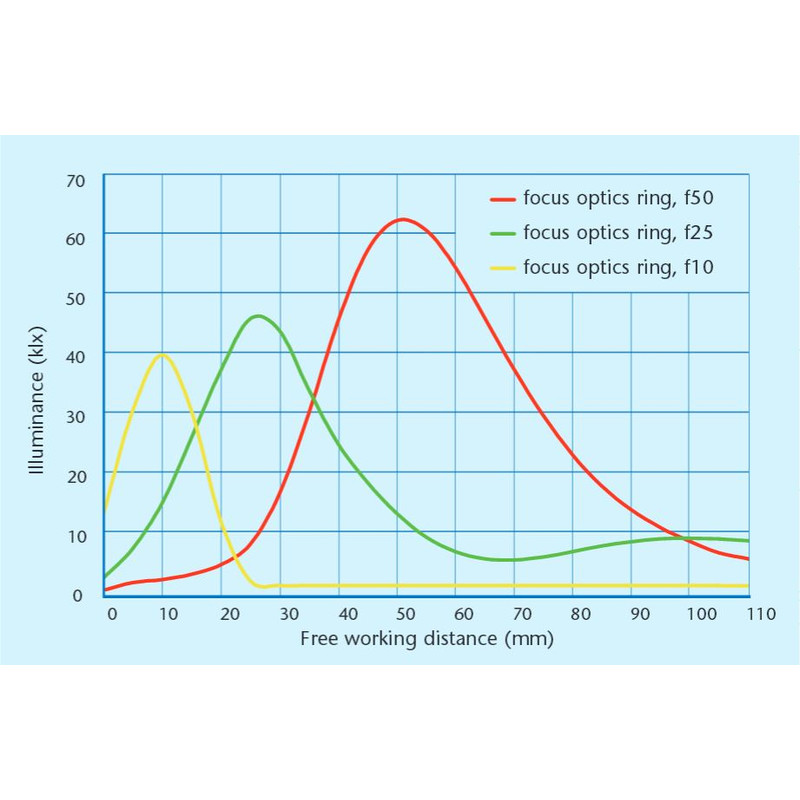

  • Max. Illuminance: 65 kLx (at 50 mm FWD) 45 kLx at 25 mm FWD)
  • Dimensions: outerØ: 82 mm/ innerØ: 66 mm/ height: 35.5mm and 67.5mm

Specificaties

Mechaniek


Werkafstand (mm)
40-90 20-40
Gesegmenteerd
nee
Lens diameter (mm)
65

Algemeen


Diameter (mm)
66
Serie
VisiLED

Toepassingsgebied


Medicijn
ja
Industrie
ja

Diversen


Leverancier Productnummer
400.150
SCHOTT LED Slim ringlicht, Ø 66
dubbel
