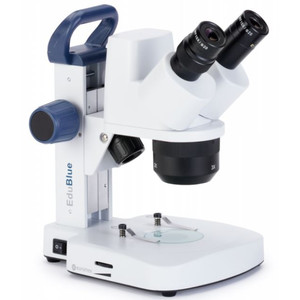

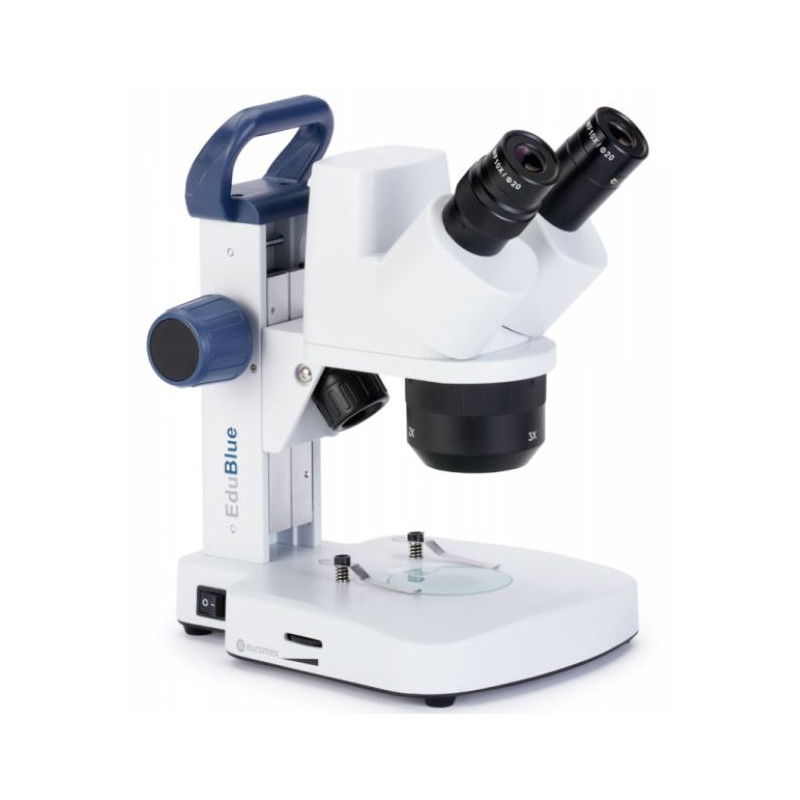

ED.1805-S, digitale stereomicroscoop, 10x/20x/40x

Highlights

• Designed for education

• Robust and sturdy, with secured eyepieces

• Dual or triple magnifications

• Available in ergonomic rack & pinion and pillar stands

• Double 1 W LED illumination

• With rechargeable batteries for cordless use

• Digital models with 3.2 MP camera available

• Ergonomic carrying grip

• 5 years warranty

Technical Spezification

Eyepieces: Pair of secured WF10x/20 mm eyepieces supplied with eyecups

Head: Binocular head with 45° inclined tube, Diopter adjustment of ± 5 on one side, Interpupillary distance adjustable between 55 and 75 mm, Digital head is supplied with a 3.2 MP USB-2 1/2” CMOS camera, Maximum 2048 x 1536 pixels resolution

Objectives (dual): Revolving nosepiece with dual 1x/3x and 1x/2x , which can provide standard magnifications of 10x and 30x or 20x and 40x, Working distance 60 mm, Field of views of 20/6.7 mm or 10/5 mm,Magnifications can be altered using optional eyepieces, All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Objectives (triples): Revolving nosepiece with triple 1x/2x/3x and 1x/2x/4x,, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x, Working distance 60 mm, Field of views of 20/10/6.7 mm or 20/10/5mm, Magnifications can be altered using optional eyepieces

Stand: The rack & pinion and pillar stands of the EduBlue are equipped with ergonomically designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/white stage plate, the coarse adjustment is equipped with tension control, the stands are alloy metal casted with hardened off-white coating

Illumination: The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately, 60 mm working distance, supplied with an external 100-240 V mains adapter/charger and 3 rechargeable batteries for corded and cordless use

Packaging: Supplied with 100-240 V mains adapter/charger, dust cover, eyecups and user manua, delivered with an external power supply, all packed in a polystyrene box

Digital models:

Camera

• Digital models are equipped with a 3.2 MP USB 2 1/2 inch sensor CMOS USB-2 camera

• Maximum resolution is 2048 x 1536 pixels, 24 bits color depth, up to 10 frames per second. Smaller resolutions are selectable

• Delivered with the ImageFocus 4 software, for capturing of images and videos, USB-2 cable and a micrometer 1mm/100 slide

• Warranty for the camera is 2 years

Software

• Delivered with ImageFocus 4 for capturing of images and videos

• This software also allows a full range of analysis like measurements on still and live images and annotations on captured images

• Save images in .jpg, .tif or .bmp formats, save videos in .avi format

• Images can be annotated and measurements can be performed on live or captured images

• Compatible with Windows XP, Vista, 7, 8 and 10, all 32 and 64 bits configurations

• For Mac OS more basic software is available

• Updates can be downloaded on our website www.euromex.co
