Nexius kop NZ.5303, trinoculair, 0,67-45x

Name: Euromex Nexius kop NZ.5303, trinoculair, 0,67-45x
Brand: Euromex
Price: 760 USD

$ 760,00 incl.btw, + verzendkosten

Heeft u elders goedkoper gezien?

korte termijn
Klaar voor verzending in 3-5 weken + verzendtijd

in winkelwagen

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

NexiusZoom ESD series

Specifications

Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

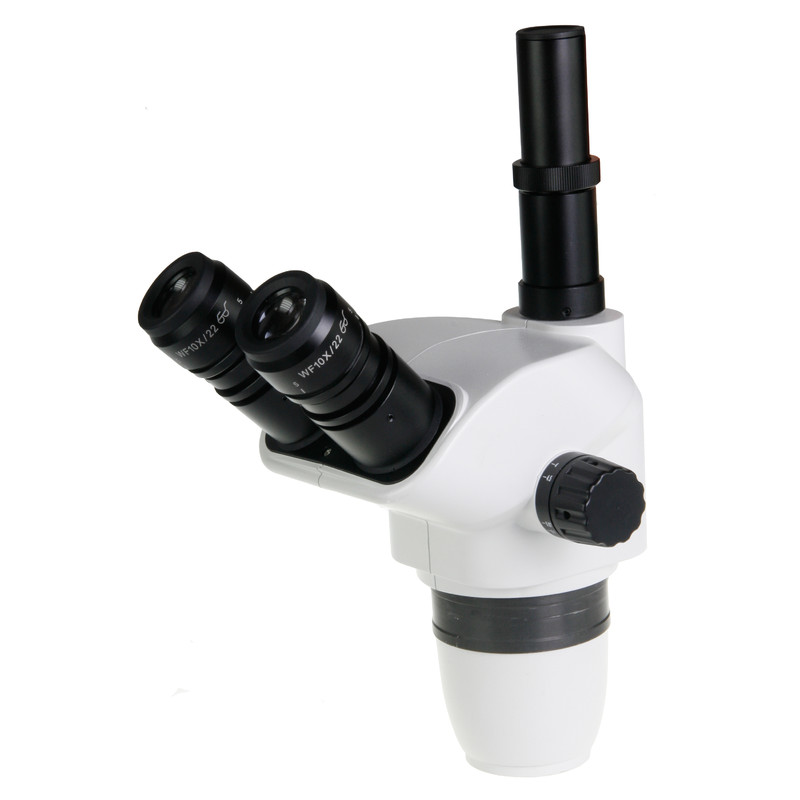

NexiusZoom trinocular zoom stereo head NZ.5303-B

NexiusZoom trinocular Greenough zoom stereo microscope

Trinocular stereo head with 0.67 x to 4,5 x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification from 6.67 to 45x

Field of view 33 to 4,9 mm

Working distance 110 mm

Without headholder
