Mikroskope > Stereomikroskope > Stereoköpfe > Optika > SZO > Optika Stereokopf SZO-T, trino, 6.7x-45x, w.d. 110 mm, Ø 23mm, click stop
Artikel-Nr.: 61882

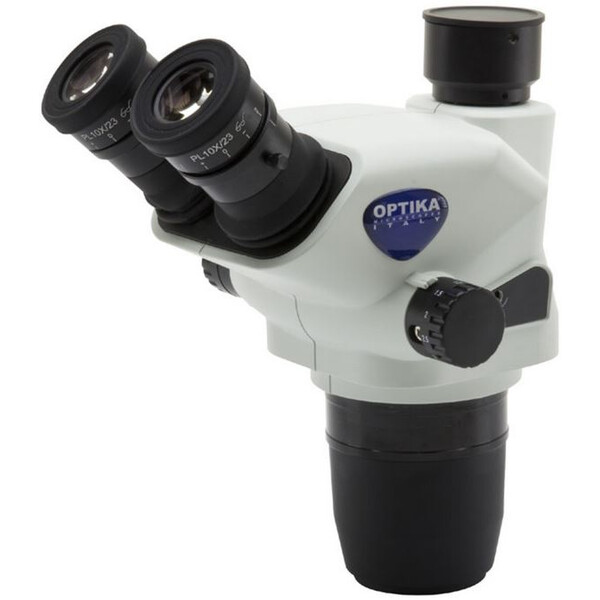

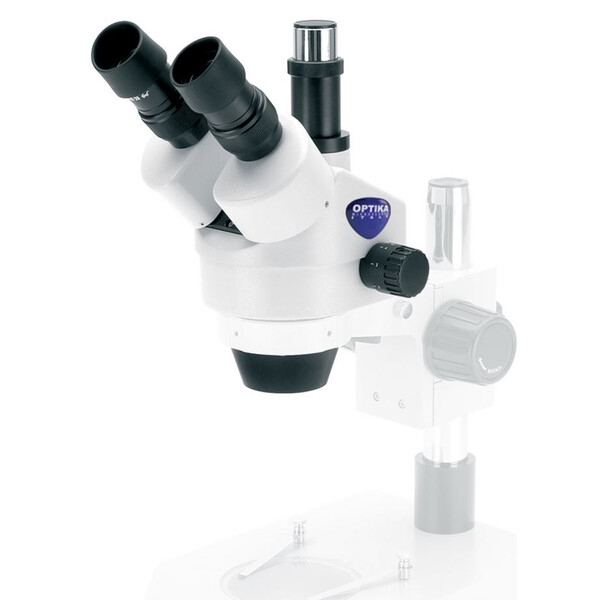

Stereokopf SZO-T, trino, 6.7x-45x, w.d. 110 mm, Ø 23mm, click stop

UVP: $ 1.120,- Unser Preis:
$ 1.010,- inkl. MwSt zzgl. Versandkosten
inkl. Bestpreis-Garantie
langfristig
versandfertig in 6-10 Wochen + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images. An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations. An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications. Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly inspected. Binocular and trinocular heads are 45° inclined to grant comfortable posture to the user even after several hours of operation.

Reliable crisp images, repetable zoom settings

Discover how easy is to obtain precise reproduction of magnifications, thus simplifying inspections and measurements. Now, with SZO your observations are easier thanks to the 11-step click-stop system in the zoom which allows you to exactly set the magnification at the same level of the previous time. Zoom control is greatly facilitated with no need of constantly look at the magnification knob.

Incredibly practical and comfortable, especially with cameras

Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Watch at the same time your specimen on a monitor and directly in the eyepieces, without any setting.

STEREOZOOM MICROSCOPES FOR ROUTINE INSPECTIONS X-LED³ EXCLUSIVE LIGHTING SOURCE

Special technology able to double the light intensity for incomparable performance, ensuring constant pure-white colour temperature. Relevant money & energy saving thanks to the incredibly low energy consumptions allow you to cut the electricity bills by 90%! On SZO-3, SZO-4, SZO-5, SZO-6.

LED – OPTIMIZED ILLUMINATION

Money & energy saving thanks to LED long lifetime (65.000 hours, 20 years in case of 8 hours/day) which is more than 20 times compared to a standard halogen bulb. LED illumination is available as transmitted light, cold light and ring light illuminators. On SZO-3, SZO-4, SZO-5, SZO-6.

SZM-T

Head: Trinocular, 360° rotating on all stands and 45° inclined.
2-position photo port: 100/0 and 0/100 (on right eyepiece tube).
Interpup. distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepiece tubes.
Eyepieces: WF10x/21 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
Working distance: 100 mm

Technische Daten

Optik


Abbildungsmaßstab (-fach)
6.7-45
Beleuchtung
keine
Kondensor
-
Objektivtyp
Achromatisch
Okular (-fach)
10/23
Stromversorgung
-
Vergrößerung (-fach)
45
Optisches System
Greenough

Mechanik


Bauart
Trinokular
Einblick (°)
45° Schrägeinblick, 360° drehbar

Besonderheiten


Akkubetrieben
-
Filterhalter
-
Integrierte Digitalkamera
-
Leuchtfeldblende
-
Zentriertisch
-
Staubschutztasche
ja

Allgemein


Serie
SZO
Farbe
weiß
Höhe (mm)
230
Länge (mm)
175
Breite (mm)
175
Gewicht (g)
1800

Fachgebiete


Industrie
ja
Biologie
ja

Anwendungsgebiete


Mineralogie
ja
Zahntechnik
ja
Halbleiter
ja
Metallurgie
ja
Werkstofftechnik
ja
Meeresbiologie
ja

Produktsicherheit

Hersteller: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
