Microscopes > Upright microscopes > Bright field microscopes > Motic > RedLine100 > Motic Microscope RED131, mono, fototubus, 40x - 1000x
Product no.: 52398

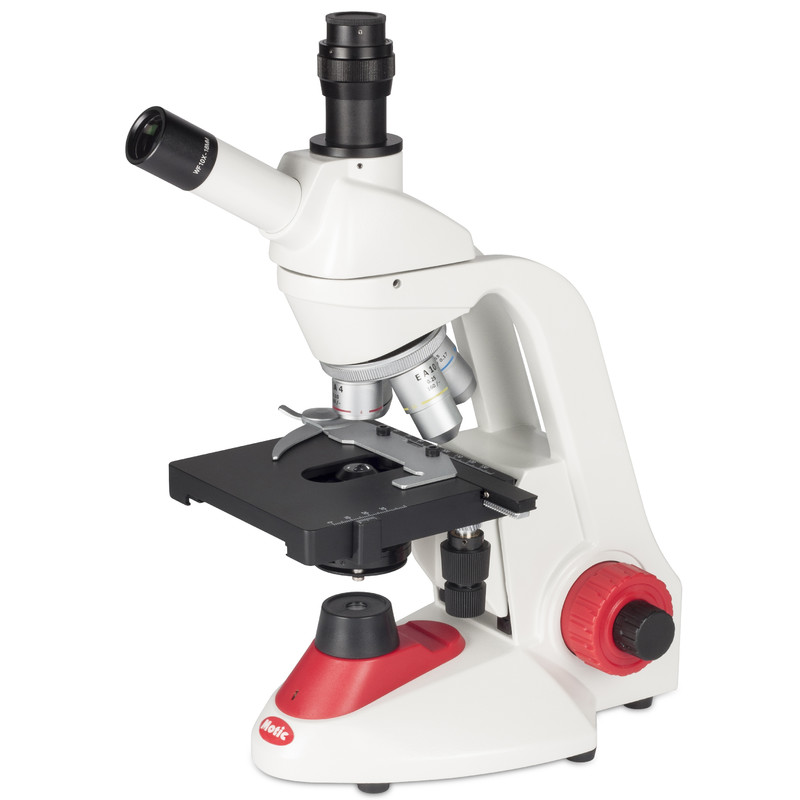

Microscope RED131, mono, fototubus, 40x - 1000x

$ 630.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series RedLine100...

The RED-100 Series

The RED-100 Series represents the ideal microscope line for primary, secondary and high school students, it is ideal to explore the world of microscopy. The sample is easily placed by using the “one-touch” sample clips. The gliding stage allows the students to gradually move the specimen in different directions.

RED131

  • Dual view (photo tube) monocular head, 30º inclined, 360º rotating
  • Widefield eyepiece WF10X/18mm with pointer
  • Reversed quadruple revolving nosepiece
  • Achromatic objectives EA 4X, 10X, 40X S, 100X S-Oil
  • Coaxial coarse and fine focusing system with tension adjustment
  • Built-in low position coaxial mechanical stage
  • Spiral mounted 1.25 N.A. Abbe condenser with iris diaphragm
  • Cordless LED illumination 20mA, 3.5V, 70mW with intensity control

Specifications

Optics

Optical system
DIN (160mm)
Magnification
40-400
Eyepiece
WF 10x/18 (45° angled eyepiece, 360° rotatable)
Objective 1
4x/0.10
Objective 2
10x/0.25
Objective 3
40x/0.65/S
Objective 4
100x/1.25/S/Oil
Lens type
Achromatic
infinity corrected
no
Condensor
Abbe condenser, NA 1.25 with iris diaphragm
Lighting
Transmitted light
Lamp type
LED (20mA, 3.5V, 70mW)
Power supply
Battery charger, mains plug

Capacity

Brightness control
yes
brightfield
yes

Mechanics

Focusing
Coarse and fine movement
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Specimen stage
Cross table (X/Y: 77 x 25 mm)
Revolver
4
Type of build
Monocular

Special features

Dust cover bag
yes
Rechargeable battery operation
yes

General

Colour
white and red
Suitable from
9
Weight (g)
4,7
Height (mm)
360
Length (mm)
234
Width (mm)
152
Series
RedLine100

Field of application

Hobby
yes
Education
yes
show more...
