Microscopy accessories > Cameras > Cameras > ToupTek > WUCAM > ToupTek Camera ToupCam WUCAM 1080PA, colour, CMOS, 1/2.8", 2.9 μm, 1080P, WiFi/USB
Product no.: 77266

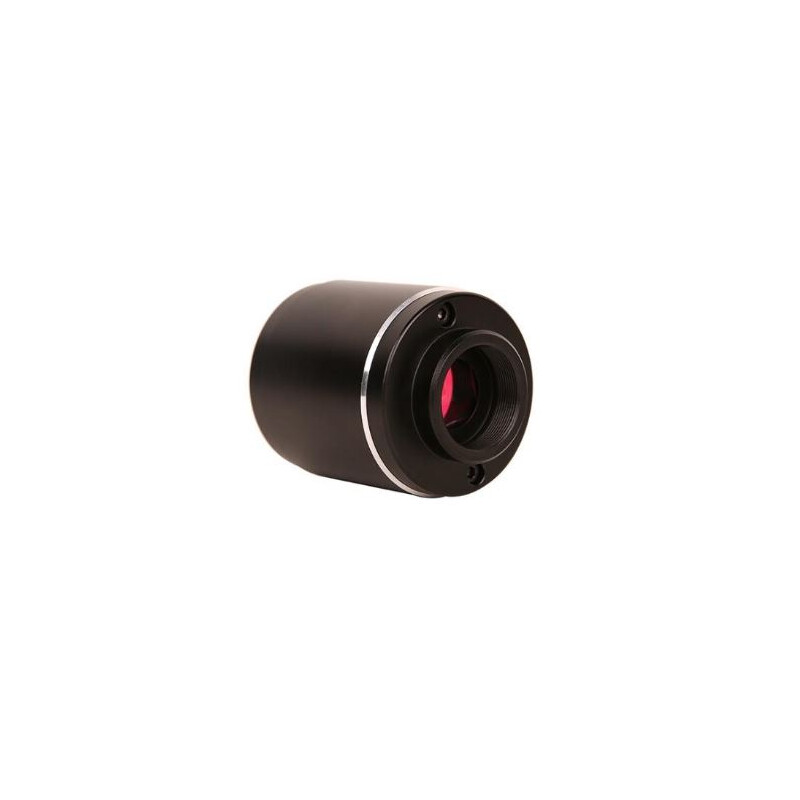

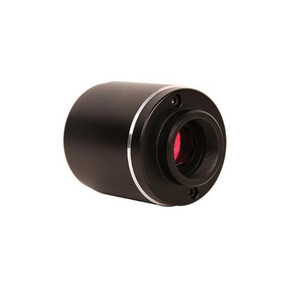

Camera ToupCam WUCAM 1080PA, colour, CMOS, 1/2.8", 2.9 μm, 1080P, WiFi/USB

$ 199.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series WUCAM...

In brief:

  • 1080P colour camera with Aptina CMOS Sensor
  • Wifi and USB video output
  • Ideal for use with mobile end devices such as smartphones and tablets (iOS and Andoird compatible)
  • Images can be transmitted simultaneously to up to 6 end devices
  • Stable and valuable housing made of aluminium alloy

WUCAM cameras

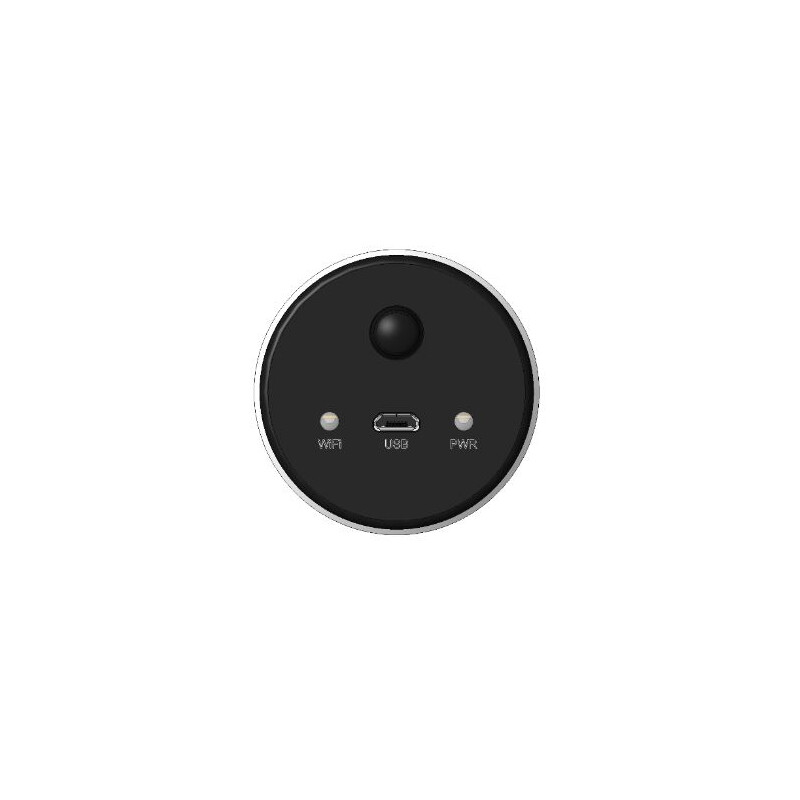

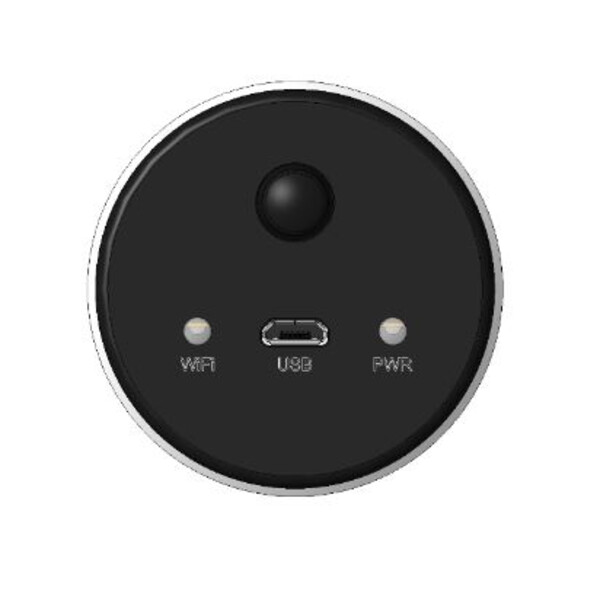

The ToupTek WUCAM cameras are cameras that have the WiFi output and USB output. An on-camera switch is used to switch between the WiFi output and USB output.

When WiFi output is available, this camera is used as a WiFi camera and could be connected to mobile devices, such as smart phones, pads and computers. It could work with ToupView app on iOS, Android and windows platform. 6 users could connect the camera simultaneously by WiFi connection.

When USB output is available, this camera is used as a USB camera and could support UVC standard. The camera could be used with ToupView or other 3rd part software which could support UVC camera. Furthermore, they are compatible with C/C++, C#VB.Net, Python, Java, DirectShow, Twain, etc.

Specifications

Capacity


Megapixel
1080P

Camera


Pixel size
2.9
Resolution Photograph (Pixel)
1920x1080
Resolution video (Pixel)
1920x1080
adapter required
0.37x, 0.35x, 0.4x, 0.5x c-mount
frame rate (fps)
30
Image transmission
WiFi
Size of chip (″)
1/2.8
Extendable storage
no
Colour camera
yes
Shutter
Rolling Shutter
Peltier cooling
no
Interface
Wifi, USB
sensor
CMOS (Aptina)
Software
ToupView/ToupLite; iOS/Android App
Supported operating systems
Microsoft Windows XP/Vista/7/8/10 (32 & 64 bit), iOS, Android
Video function
yes
Sensitivity (mV/s)
1300

General


Series
WUCAM

Field of application


Medicine
yes
Hobby
yes
Industry
yes
Education
yes

Area of application


Secondary school
yes
University
yes
High School
yes
Technical training
yes

Miscellaneous


supplier product number
WUCAM1080PA

Downloads

Product safety

manufacturer: ToupTek Photonics Co., Ltd., 15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd., Hangzhou, 310030 Zhejiang, CN, www.touptek.com
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
