Telescope accessories > Mounts & accessories > Mounts > Equatorial with GoTo > iOptron > SmartEQ > iOptron Montierung SmartEQ Pro+ GoTo GEM
( 4 / 5 )
Product no.: 47555

Montierung SmartEQ Pro+ GoTo GEM

$ 613.01 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Right of return up to January 31 2025!


Product description

Specifications

Capacity


Designation
SmartEQ
Max. additional load capacity (kg)
6
Polar elevation setting (°)
0 - 62
Motor speeds
1×,2×,8×,16×,64×,128×,256×,512×,MAX(~4º/sec)
Worm gear teeth (RA) (piece)
120
Counterweight(s) (piece)
1 (1kg)
Material of counterweights
Steel
Diameter of counterweight bar (mm)
16
Software
Go2Nova 8408
Language
English
Database
150.000
Power supply
12
Power consumption in open circuit (mA)
1000
Battery durability (h)
16
Motor type
Servomotors
Autoguider
yes
Mounting saddle
Vixen-Style
Worm gear teeth (DEC) (piece)
120
DEC worm gear diameter (mm)
60
RA worm gear diameter (mm)
60
DEC axis diameter (mm)
25
RA axis diameter (mm)
25
Operating temperature
-10° bis 40°C

Special features


PEC correction
yes
GoTo system
yes
Updateable via web
yes
Accessory tray
yes
Traveling mount
yes

Equipment

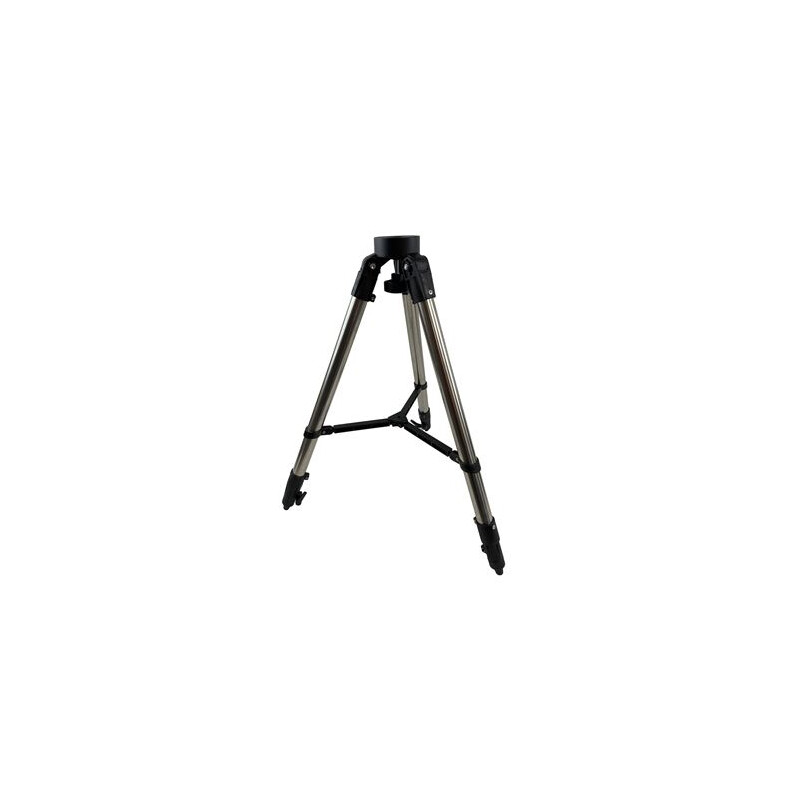

Tripod
Tripod
Transport cases
no
Pole finder
yes

Tripod


Tripod material
Steel
Tripod weight (kg)
2,6
Tripod leg diameter (mm)
32

General


Total weight (kg)
5,4
Series
SmartEQ
Type
Mount
Type of build
Equatorial

GoTo control


Database
150.000
GPS
no
Hand Controller
Go2Nova 8408
GoTo Language
English

Miscellaneous


Battery type
Mignon (AA, LR6)

Product safety

manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
iOptron Montierung SmartEQ Pro+ GoTo GEM
iOptron Montierung SmartEQ Pro+ GoTo GEM

Customer reviews

Would buy again.

Review by Phasko on 15.12.2020 23:52:11

( 4 / 5 )

Coming into this without a clue to what i was doing, i'm able to align and track all objects i want with relative ease. At first i was a bit frustrated, but the instruction manual is clear enough. Polar alignment is a breeze after some practice, and the motors are pretty precise.

Positive points:
Overall strong build, with good fastening. i have no wobble issues.
Mount is very rigid.
All adjustments to alignment with both screws and with the motor are easy and precise.
Cables are long enough.

Negative points:
Battery covers are questionable quality, one broke off on the first day.
Polar alignment scope is sometimes blocked by a tube that doesn't rotate reliably.
Adjustment screw for tilt can hit the polar alignment scope and is unusable in my opinion.
